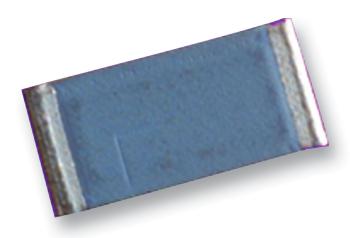

TT ELECTRONICS / WELWYN - HVC2512-10MFT18 - SMD Chip Resistor, 10 Mohm, ± 1%, 1 W, 2512 [6432 Metric], Thick Film, High Voltage
- Resistor Case Style: 2512 [6432 Metric]
- Resistance: 10Mohm
- Product Range: HVC Series
- Voltage Rating: 3kV
- Resistor Element Material: Thick Film
- Power Rating: 1W
- Resistance Tolerance: ± 1%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 0.7mm
- External Length / Height: 6.5mm
- External Width: 3.2mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Resistor Mounting: Surface Mount Device
