HVR3700003304JA100 Res, 3M3, 5%, 500mW, Axial, Metal Film Vishay

VISHAYSKU:HVR3700003304JA100 Bestelcode:9477357

Prijs:
Actie prijs€0,55

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (737 units)

Documenten en downloads

Omschrijving

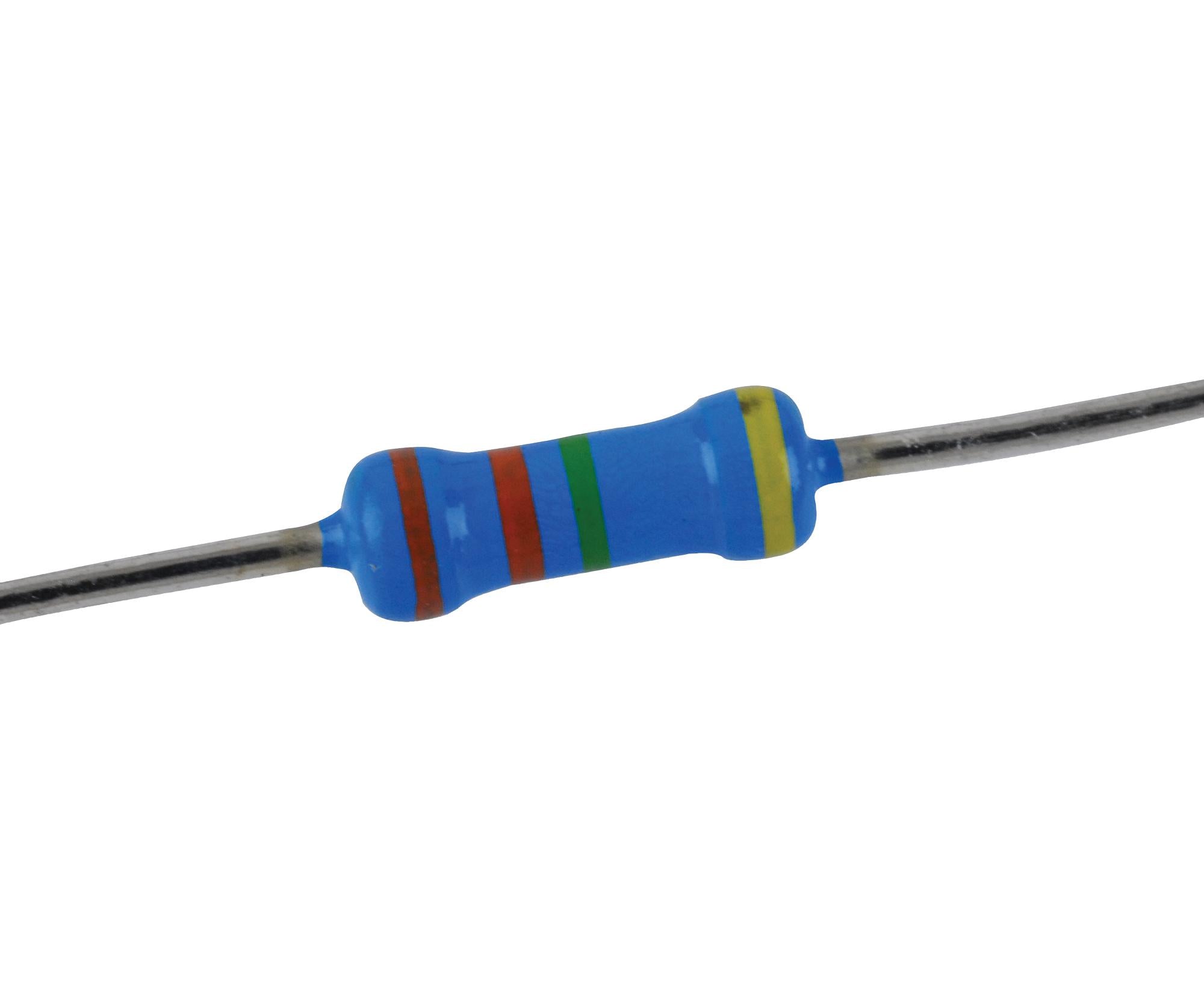

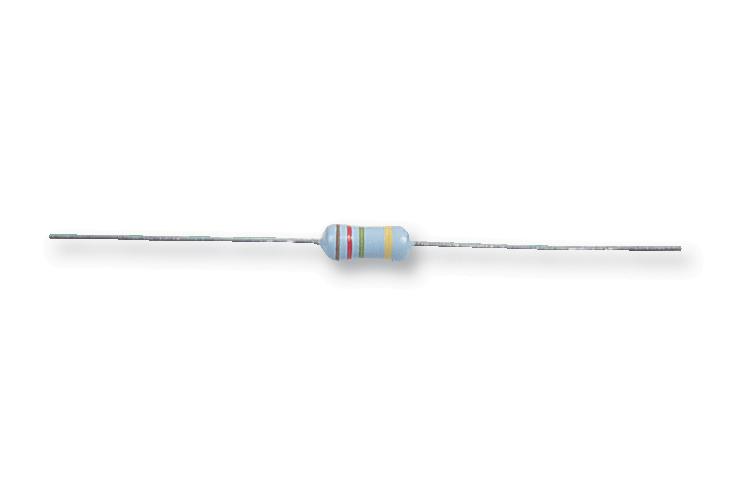

VISHAY - HVR3700003304JA100 - Through Hole Resistor, 3.3 Mohm, HVR37, 500 mW, ± 5%, Axial Leaded, 3.5 kV

  • Resistance: 3.3Mohm
  • Product Range: HVR37 Series
  • Power Rating: 500mW
  • Resistance Tolerance: ± 5%
  • Resistor Case Style: Axial Leaded
  • Voltage Rating: 3.5kV
  • Resistor Element Material: Metal Film
  • Temperature Coefficient: ± 250ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Category: UL
  • Body Diameter: 3.7mm
  • External Length / Height: 10mm
  • Full Power Rating Temperature: 70°C
  • Lead Diameter: 0.7mm
  • Lead Length: 26mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Resistor Mounting: Through Hole
  • Standard: BS415
  • Temperature Coeff. +: 250ppm/°C
  • Temperature Coeff. -: 250ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating V DC: 3500V
  • Voltage Rating VAC: 2500V
