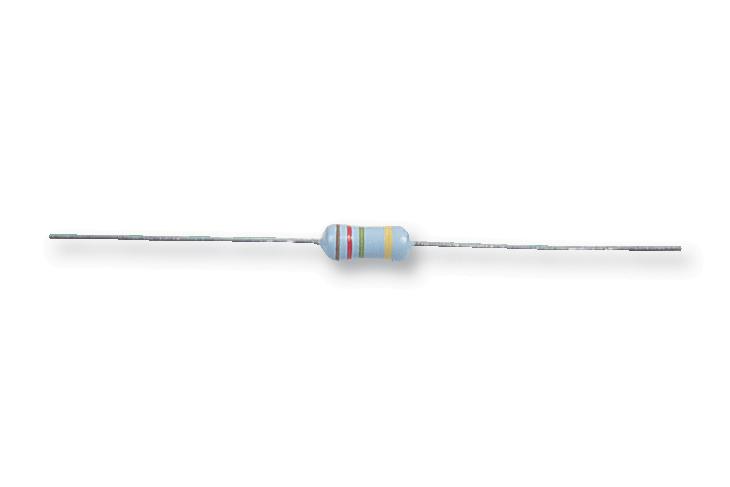

VISHAY - HVR3700004704JA100 - Through Hole Resistor, 4.7 Mohm, HVR37, 500 mW, ± 5%, Axial Leaded, 3.5 kV
- Resistance: 4.7Mohm
- Product Range: HVR37 Series
- Power Rating: 500mW
- Resistance Tolerance: ± 5%
- Resistor Case Style: Axial Leaded
- Voltage Rating: 3.5kV
- Resistor Element Material: Metal Film
- Temperature Coefficient: ± 250ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Category: UL
- Body Diameter: 3.7mm
- External Length / Height: 10mm
- Full Power Rating Temperature: 70°C
- Lead Diameter: 0.7mm
- Lead Length: 26mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Resistor Mounting: Through Hole
- Standard: BS415
- Temperature Coeff. +: 250ppm/°C
- Temperature Coeff. -: 250ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
- Voltage Rating V DC: 3500V
- Voltage Rating VAC: 2500V
