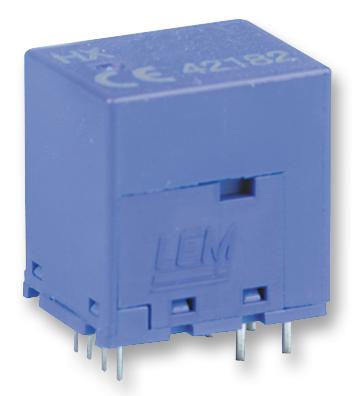

HX 05-NP Current Transducer Lem

LEMSKU:HX 05-NP Bestelcode:1617425

Prijs:
Actie prijs€21,58

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (168 units)

Documenten en downloads

Omschrijving

LEM - HX 05-NP - Current Transducer, HX Series, PCB, 5A, -15A to 15A, 1 %, Voltage Output, 15 Vdc

  • Sensor Output: Voltage
  • Supply Voltage DC Min: 12V
  • Supply Voltage DC Max: 15V
  • Current Measuring Range DC: -15A to 15A
  • Current Measuring Range AC: -15A to 15A
  • Response Time: 3µs
  • Accuracy %: 1%
  • Product Range: HX 05..15-NP Series
  • SVHC: No SVHC (15-Jan-2018)
  • Accuracy: 1%
  • Bandwidth: 50kHz
  • Current Consumption: 20mA
  • Current Range AC: DC, AC, Pulsed, Mixed
  • Current Range DC: DC, AC, Pulsed, Mixed
  • External Depth: 15.4mm
  • External Length / Height: 20mm
  • External Width: 19mm
  • Flammability Rating: UL94-V0
  • Input Voltage: 15V
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Output Voltage: 4V
  • Output Voltage Min: -4V
  • Supply Voltage Range DC: ± 12V to ± 15V
  • Transducer Function: Current
