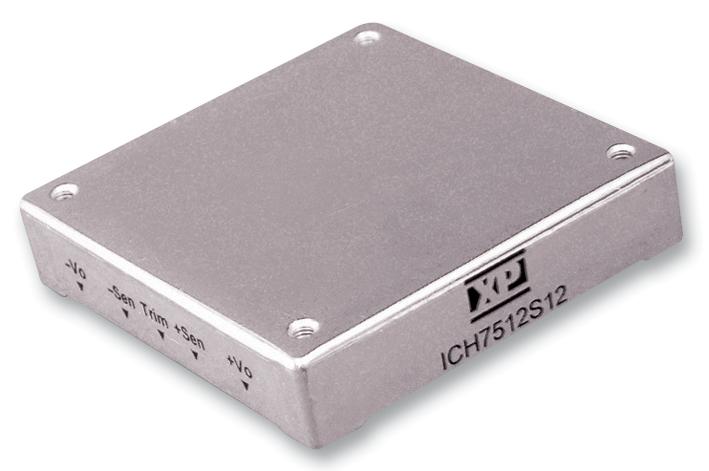

XP POWER - ICH10024S12 - Isolated Through Hole DC/DC Converter, 2:1 Input, ITE, 2:1, 100 W, 1 Output, 12 V, 8.3 A
- No. of Outputs: 1 Output
- Output Power Max: 100W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 8.3A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: ICH Series
- Input Voltage DC Min: 18V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed, Adjustable
- DC / DC Converter Type: Half Brick
- DC / DC Converter Mounting: Through Hole
- Width: 57.9mm
- Height: 12.7mm
- Depth: 61mm
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: UL
- Approvals & Standards: UL
- Efficiency: 85%
- External Depth: 57.9mm
- External Length / Height: 12.7mm
- External Width: 61mm
- Isolation Voltage: 1.5kV
- Line Regulation: 02%
- Load Regulation: 02%
- No. of Outputs: 1Outputs
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Power Rating: 100W
- Supply Voltage: 24V
- Weight: 100g
