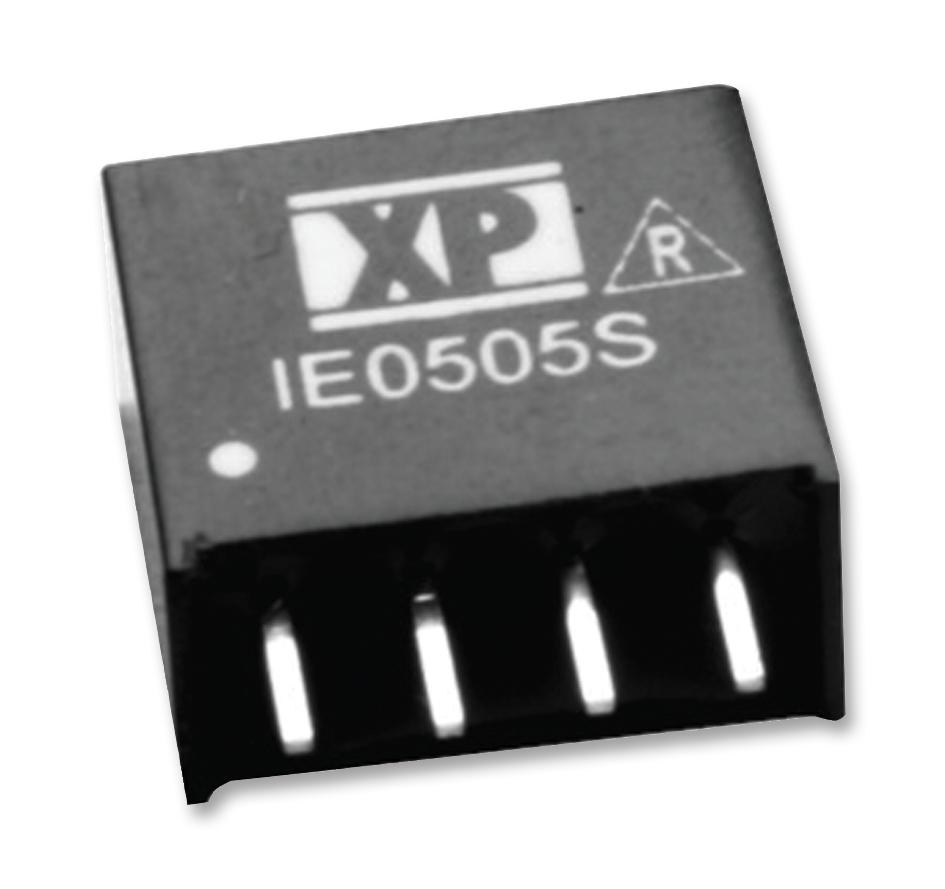

XP POWER - IE2424S-H - Isolated Through Hole DC/DC Converter, 3kV Isolation, ITE, 1:1, 1 W, 1 Output, 24 V, 42 mA
- No. of Outputs: 1 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 24V
- Output Current - Output 1: 42mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: IE Series
- Input Voltage DC Min: 21.6V
- Input Voltage DC Max: 26.4V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 6.1mm
- Height: 10.15mm
- Depth: 11.68mm
- SVHC: No SVHC (15-Jan-2018)
- Efficiency: 78%
- External Depth: 9.65mm
- External Length / Height: 11.68mm
- External Width: 6.1mm
- Input Voltage: 24V
- Isolation Voltage: 3kV
- No. of Outputs: 1Outputs
- Off Load Current: 10mA
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Output Ripple Voltage pk-pk: 60mV
- Power Rating: 1W
- Supply Voltage: 24V
