IHF450 Filter, 50A, 3 Phase, Neutral ROXBURGH EMC

ROXBURGH EMCSKU:IHF450 Bestelcode:1187681

Prijs:
Actie prijs€310,58

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 1 product leverbaar

Documenten en downloads

Omschrijving

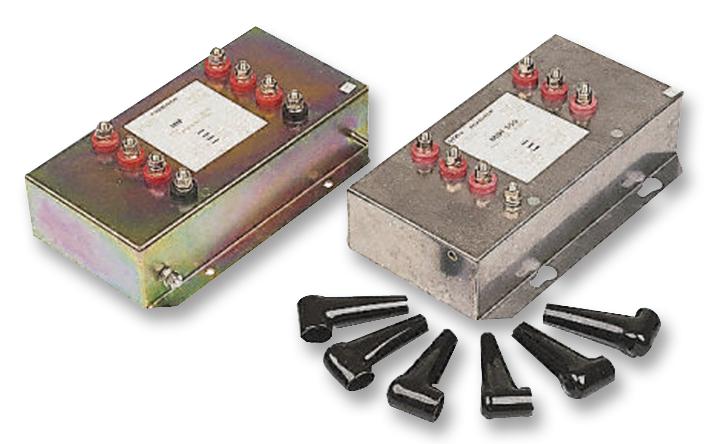

ROXBURGH EMC - IHF450 - Power Line Filter, Installation, General Purpose, 440 VAC, 50 A, Three Phase, 1 Stage

  • Current Rating: 50A
  • Voltage Rating: 440V
  • Filter Type: EMI, RFI
  • Filter Terminals: Stud
  • Inductance Min: 280µH
  • Capacitance: 2.2µF
  • Leakage Current Max: 3.5mA
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: EN, VDE
  • Bleed Resistor Resistance: 1mohm
  • External Depth: 230mm
  • External Length / Height: 55mm
  • External Width: 143mm
  • No. of Phases: Three Phase
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Standard: IEC950
  • Supply Frequency Max: 60Hz
  • Supply Frequency Min: 50Hz
  • Test Voltage: 2kV
  • Voltage Rating VAC: 440V
