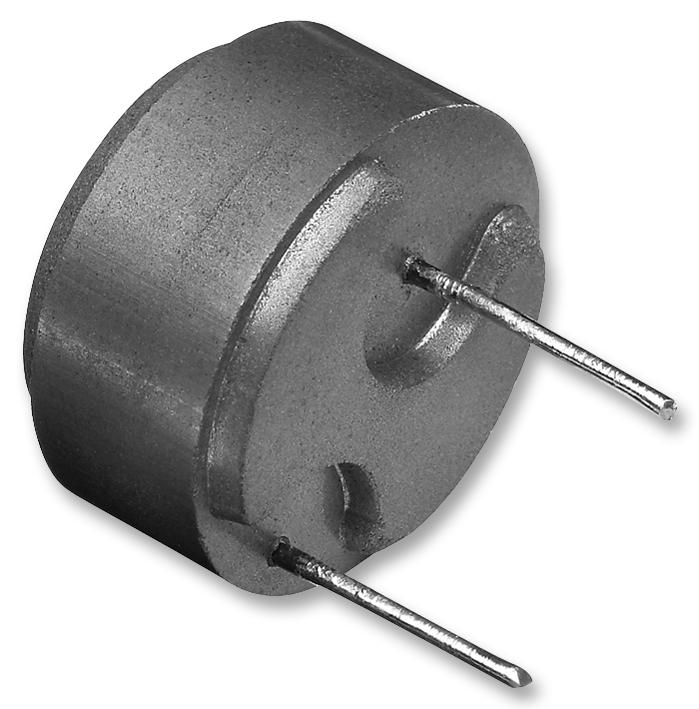

VISHAY - IHTH0750JZEB4R7M5A - Inductor, IHTH-0750JZ-5A Series, 4.7 µH, 25 A, 30 A, 3000 µohm, ± 20%
- Product Range: IHTH-0750JZ-5A Series
- Inductance: 4.7µH
- RMS Current (Irms): 25A
- Saturation Current (Isat): 30A
- DC Resistance Max: 0.003ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Body Diameter: 20.47mm
- DC Current Rating: 22A
- External Length / Height: 9.52mm
- Inductance Measurement Frequency: 100kHz
- Inductor Case Style: Radial Leaded
- Inductor Type: High Current
- Lead Diameter: 1.67mm
- Lead Length: 4.19mm
- Lead Spacing: 11.78mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Resonant Frequency: 1MHz
