IL0505S Converter, DC/DC, 2W, 5V XP Power

XP POWERSKU:IL0505S Bestelcode:8728097

Prijs:
Actie prijs€16,41

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (417 units)

Documenten en downloads

Omschrijving

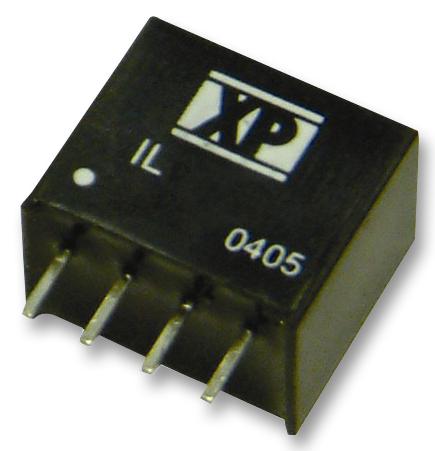

XP POWER - IL0505S - Isolated Through Hole DC/DC Converter, ITE, 1:1, 2 W, 1 Output, 5 V, 400 mA

  • No. of Outputs: 1 Output
  • Output Power Max: 2W
  • Output Voltage - Output 1: 5V
  • Output Current - Output 1: 400mA
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: IL Series
  • Input Voltage DC Min: 4.5V
  • Input Voltage DC Max: 5.5V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: SIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 7.5mm
  • Height: 10.16mm
  • Depth: 11.68mm
  • SVHC: No SVHC (15-Jan-2018)
  • Efficiency Max: 77%
  • Input Voltage: 5V
  • Isolation Voltage: 1kV
  • Line Regulation: 1.2%
  • Load Regulation: 10%
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
