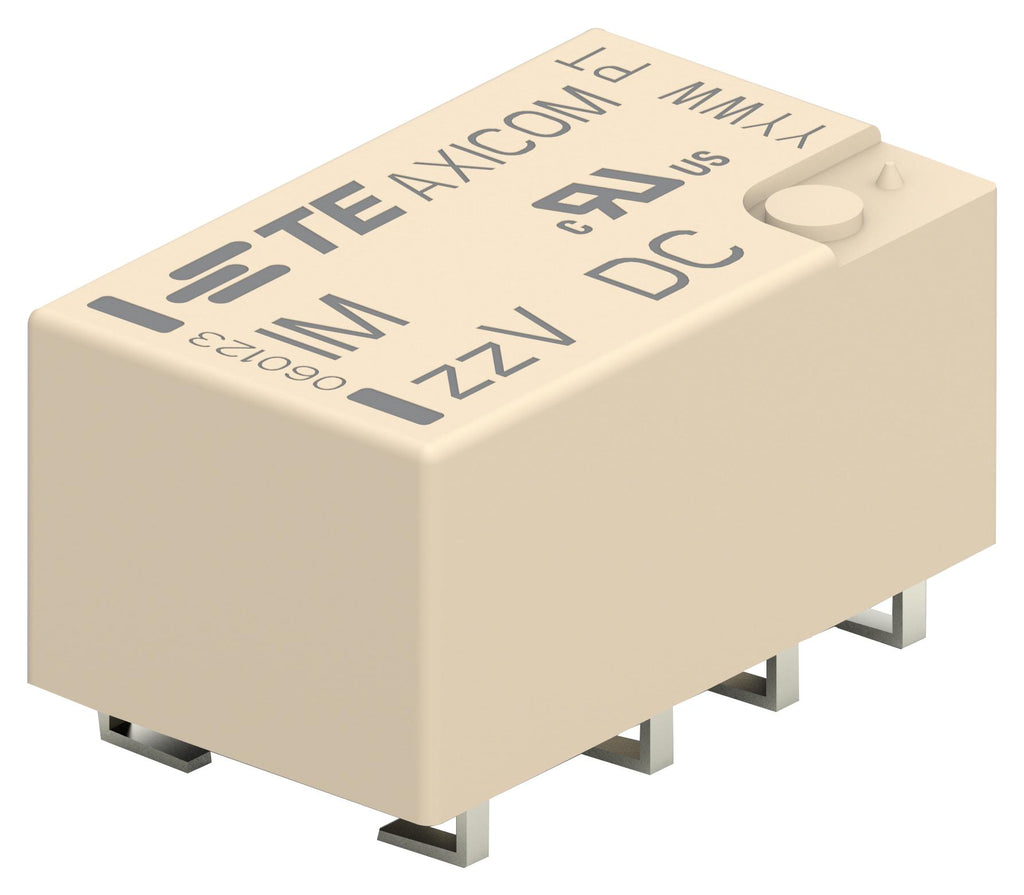

AXICOM - TE CONNECTIVITY - 4-1462037-6 - Signal Relay, 12 VDC, DPDT, 2 A, IM, Surface Mount, Non Latching
- Coil Voltage: 12VDC
- Contact Configuration: DPDT
- Contact Current: 2A
- Product Range: IM Series
- Relay Mounting: SMD
- Coil Type: Non Latching
- Relay Terminals: Solder
- Contact Voltage VAC: 250V
- Contact Voltage VDC: 220V
- Contact Material: Palladium Ruthenium
- Coil Resistance: 1.029kohm
- SVHC: No SVHC (15-Jan-2019)
- Coil Power Continuous: 140mW
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 2A
- Contact Current DC Max: 2A
- Contact Current Max: 2A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 220V
- Contact Voltage DC Nom: 220V
- External Depth: 10mm
- External Height: 5.65mm
- External Length / Height: 5.65mm
- External Width: 6mm
- Nom Operating Power: 140mW
- Operating Voltage Range: 9V to 28.9V
- Relay Type: General Purpose
