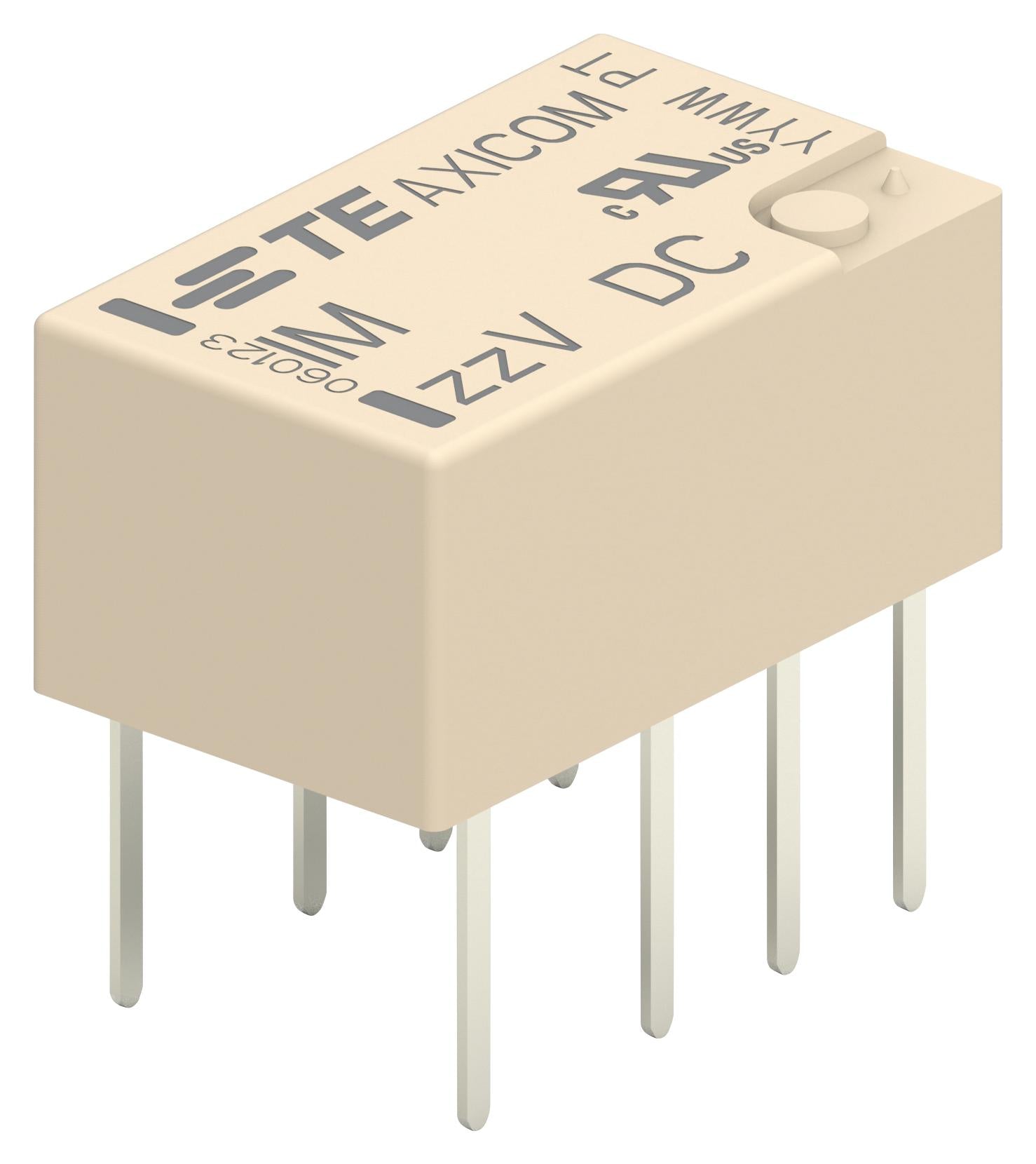

IM07TS Relay, Signal, DPDT, 250VAC, 220VDC, 2A Te Connectivity

TE CONNECTIVITYSKU:IM07TS Bestelcode:4219211

Prijs:
Actie prijs€5,62

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (10496 units)

Documenten en downloads

Omschrijving

TE CONNECTIVITY - 3-1462037-0 - Signal Relay, 24 VDC, DPDT, 2 A, IM, Through Hole, Non Latching

  • Coil Voltage: 24VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: IM Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: 250V
  • Contact Voltage VDC: 220V
  • Contact Material: Palladium Ruthenium
  • Coil Resistance: 2.88kohm
  • SVHC: No SVHC (27-Jun-2018)
  • Coil Power Continuous: 140mW
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 2A
  • Contact Current DC Max: 2A
  • Contact Current Max: 2A
  • Contact Current Rating: 2A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 11.4V
  • Contact Voltage DC Nom: 220V
  • DC Coil Power: 140mW
  • External Depth: 5.65mm
  • External Height: 10mm
  • External Length / Height: 10mm
  • External Width: 6mm
  • Nom Operating Power: 200mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 1ms
  • Power Rating: 140mW
  • Relay Type: General Purpose
  • Release Time: 1ms
  • Switch Current Max: 2A
  • Switching Current Max: 2A
  • Switching Power Max: 60W
