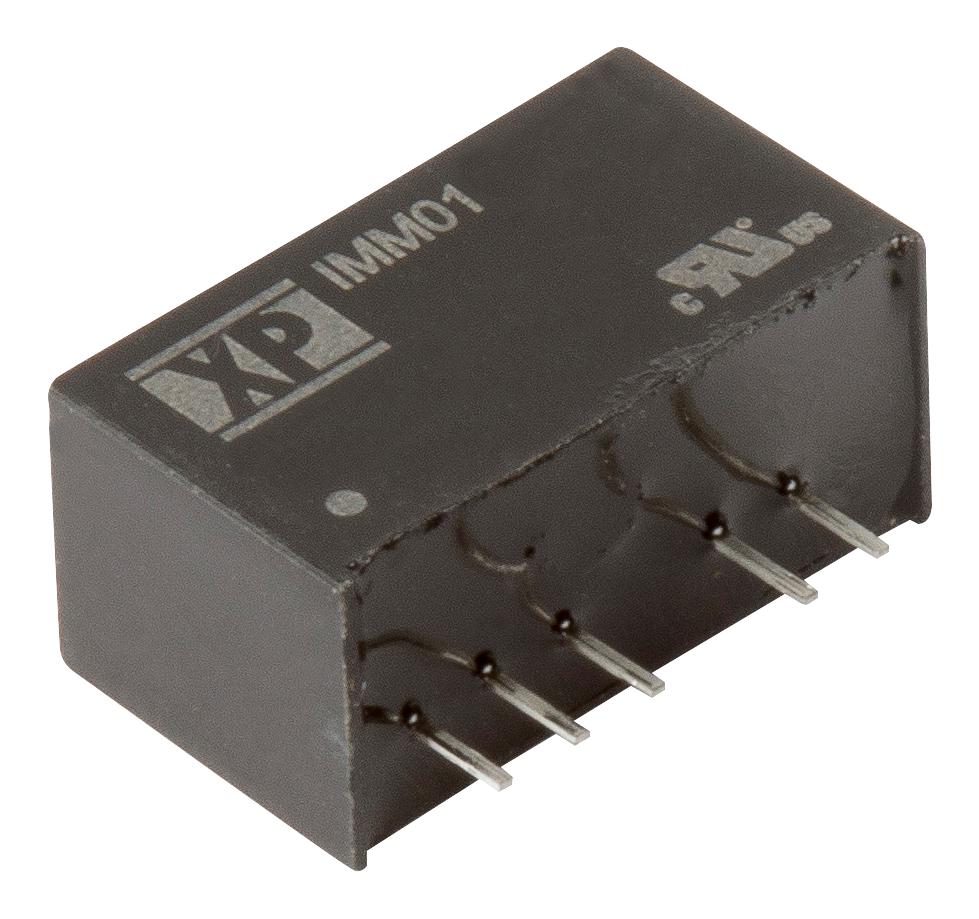

XP POWER - IMM0112D15 - Isolated Through Hole DC/DC Converter, Medical, 2:1, 1 W, 2 Output, 15 V, 33 mA
- No. of Outputs: 2 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 15VDC
- Output Current - Output 1: 33mA
- Output Voltage - Output 2: -15VDC
- Output Current - Output 2: 33mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: IMM01 Series
- Input Voltage DC Min: 9VDC
- Input Voltage DC Max: 18VDC
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 19.5mm
- Height: 11.1mm
- Depth: 9.2mm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: CSA 22.2 No. 60601, IEC 60601, UL
