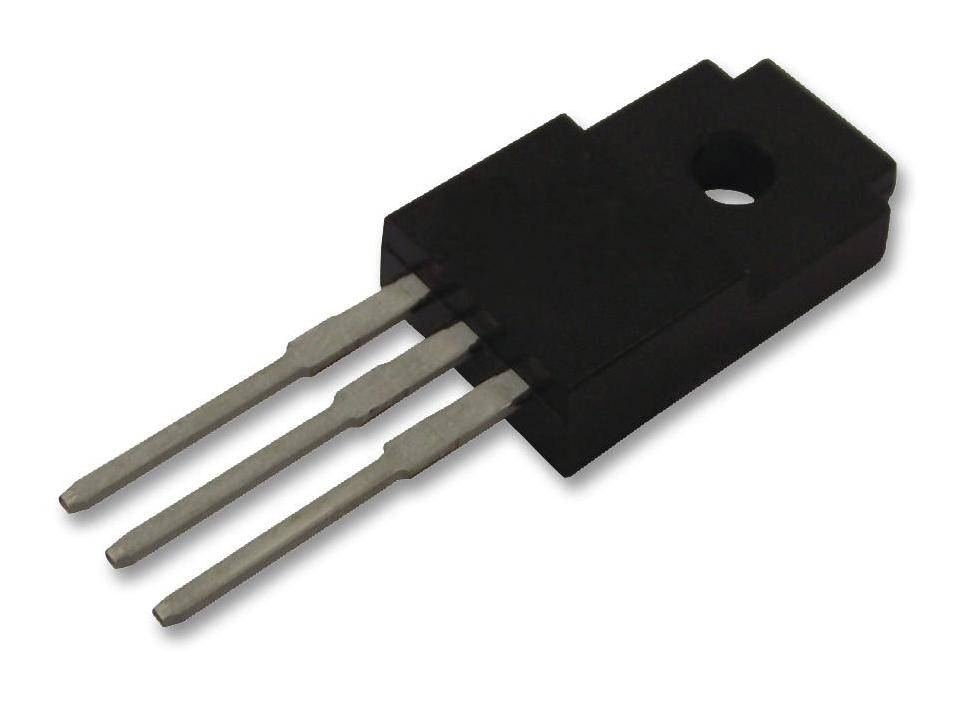

INFINEON - IPA60R125CPXKSA1 - Power MOSFET, N Channel, 650 V, 25 A, 0.11 ohm, TO-220, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 25A
- Drain Source Voltage Vds: 650V
- On Resistance Rds(on): 0.11ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3V
- Power Dissipation Pd: 35W
- Transistor Case Style: TO-220
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Current Id Max: 25A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Through Hole
- Transistor Type: Power MOSFET
- Voltage Vds Typ: 650V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
