Documenten en downloads
Omschrijving

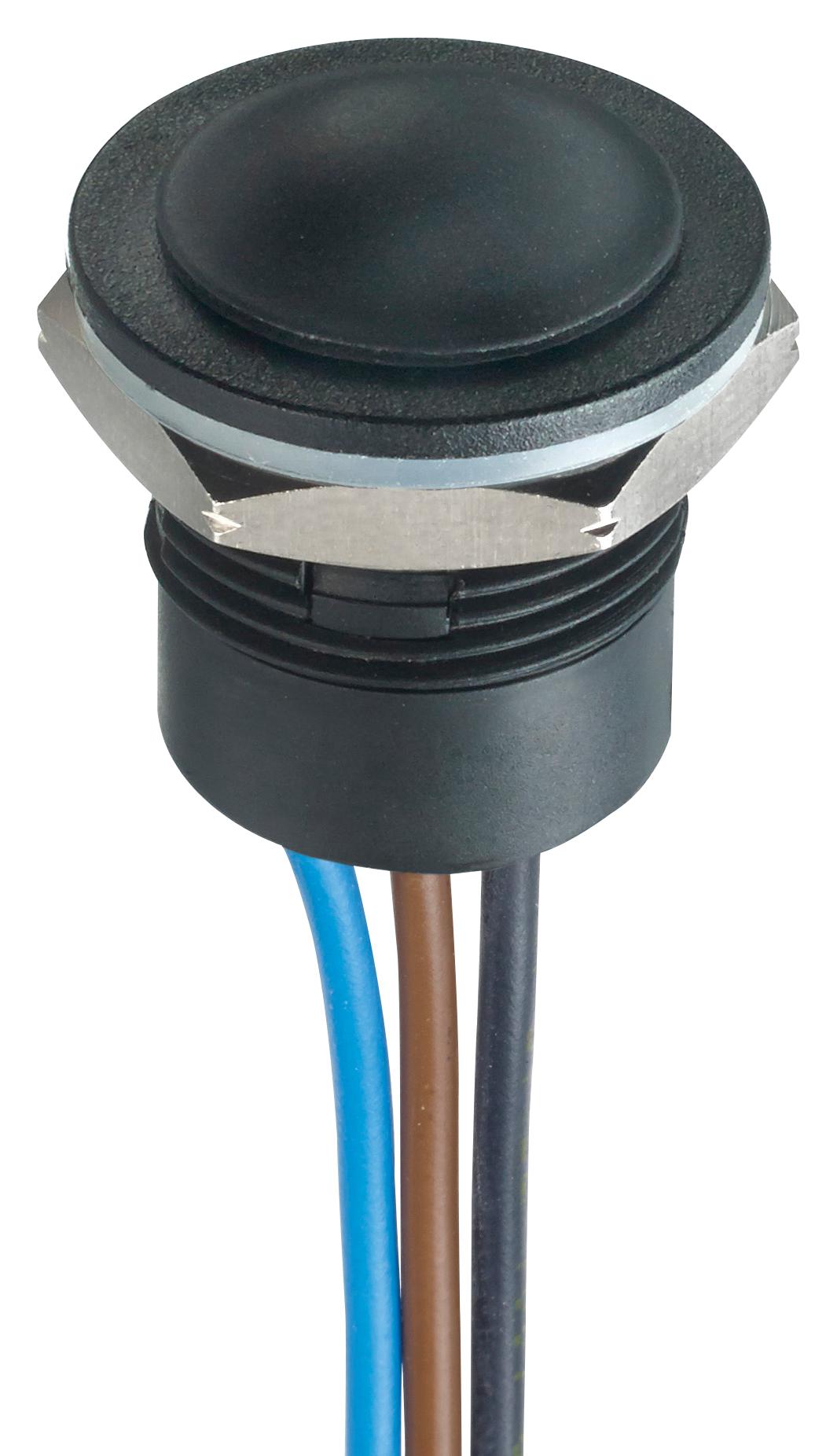

APEM - IRR3F432 - Industrial Pushbutton Switch, IR, 16.2 mm, SPST-NO, Momentary, Round, Green
- Switch Operation: Momentary
- Contact Configuration: SPST-NO
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 48V
- Contact Current Max: 200mA
- Switch Terminals: Wire Leaded
- Product Range: IR Series
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Round
- Actuator / Cap Colour: Green
- Bush Diameter: 16mm
- Contact Current AC Max: 200mA
- Contact Current DC Max: 200mA
- Contact Resistance: 100mohm
- Contact Voltage VAC: 250V
- Contact Voltage VDC: 48V
- Dielectric Strength VDC: 1500V
- IP Rating: IP67
- Illumination Colour: Non-illuminated
- Insulation Resistance: 1Gohm
- No. of Electrical Operations: 500000
- No. of Mechanical Operations: 1000000
- Operating Force Max: 5N
- Operating Force Min: 2N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Panel Cutout Diameter: 16.2mm
- Panel Thickness: 8mm
- Pushbutton Actuator Style: Round
- Pushbutton Switch Type: Industrial
- Switch Mounting: Panel
- Travel: 1.7mm
