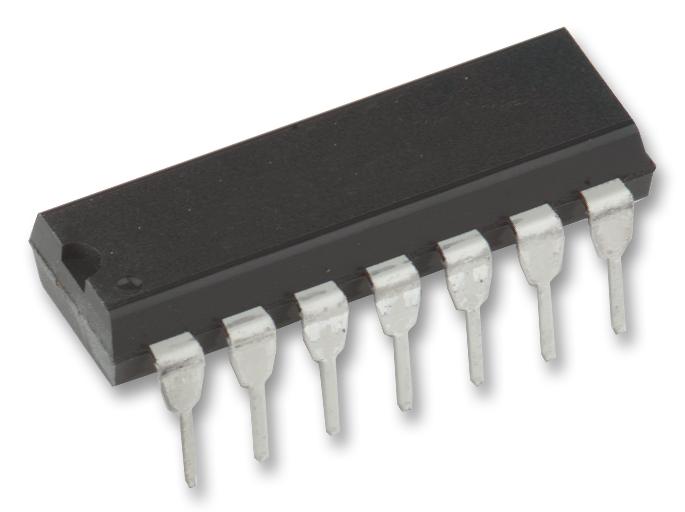

INFINEON - IRS21814PBF - MOSFET Driver, High Side And Low Side, 10V-20V Supply, 2.3A Out, 220ns Delay, DIP-14
- Driver Configuration: High Side and Low Side
- Peak Output Current: 2.3A
- Supply Voltage Min: 10V
- Supply Voltage Max: 20V
- Driver Case Style: DIP
- No. of Pins: 14Pins
- Input Delay: 180ns
- Output Delay: 220ns
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 21814
- Device Type: MOSFET
- Module Configuration: High Side, Low Side
- Offset Voltage: 600V
- Operating Temperature Range: -40°C to +125°C
- Output Current: 1.9A
- Output Current + Max: 1900mA
- Output Current - Max: 2300mA
- Output Voltage: 620V
- Output Voltage Max: 20V
- Output Voltage Min: 10V
- Power Dissipation Pd: 1600mW
- Supply Voltage Range: 10V to 20V
- Termination Type: Through Hole
