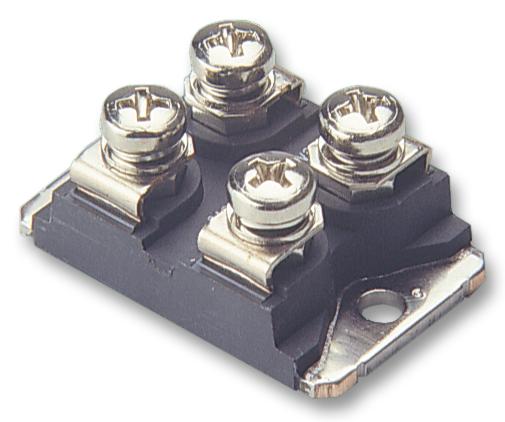

IXYS SEMICONDUCTOR - IXFN36N100 - Power MOSFET, N Channel, 1 kV, 36 A, 0.24 ohm, ISOTOP, Module
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 36A
- Drain Source Voltage Vds: 1kV
- On Resistance Rds(on): 0.24ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 5V
- Power Dissipation Pd: 700W
- Transistor Case Style: ISOTOP
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (12-Jan-2017)
- Avalanche Single Pulse Energy Eas: 4J
- Current Id Max: 36A
- Current Temperature: 25°C
- Full Power Rating Temperature: 25°C
- Isolation Voltage: 2.5kV
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -55°C
- No. of Transistors: 1
- On State Resistance Max: 240mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 144A
- Rate of Voltage Change dv / dt: 5V/µs
- Repetitive Avalanche Energy Max: 64mJ
- Termination Type: Screw
- Voltage Vds Typ: 1kV
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 5.5V
- Weight: 0.046kg
