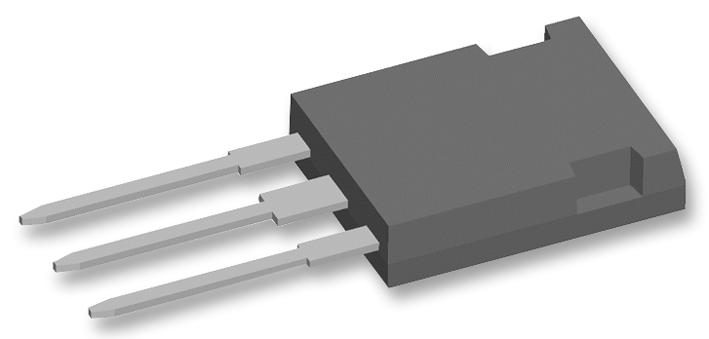

IXFR140N20P MOSFET, N, ISOPLUS247 IXYS Semiconductor

IXYS SEMICONDUCTORSKU:IXFR140N20P Bestelcode:1300089

Prijs:
Actie prijs€18,32

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 1 product leverbaar

Documenten en downloads

Omschrijving

IXYS SEMICONDUCTOR - IXFR140N20P - Power MOSFET, N Channel, 200 V, 90 A, 0.022 ohm, ISOPLUS-247, Through Hole

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 90A
  • Drain Source Voltage Vds: 200V
  • On Resistance Rds(on): 0.022ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 5V
  • Power Dissipation Pd: 300W
  • Transistor Case Style: ISOPLUS-247
  • No. of Pins: 3Pins
  • Operating Temperature Max: 175°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (12-Jan-2017)
  • Capacitance Ciss Typ: 7500pF
  • Current Id Max: 90A
  • Isolation Voltage: 2.5kV
  • N-channel Gate Charge: 240nC
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Reverse Recovery Time trr Max: 200ns
  • Rth: 0.5
  • Termination Type: Through Hole
  • Voltage Vds Typ: 200V
  • Voltage Vgs Max: 20V
  • Voltage Vgs Rds on Measurement: 10V
