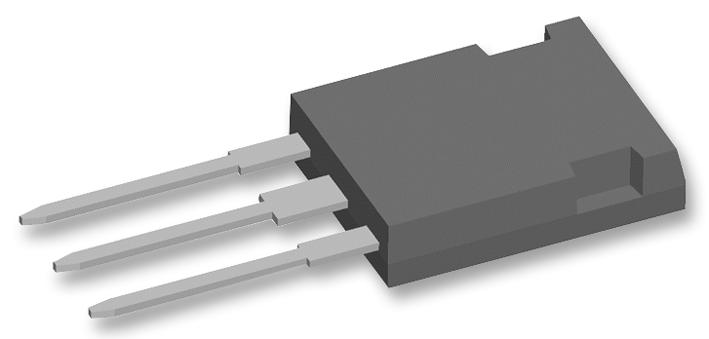

IXFR36N60P MOSFET, N, ISOPLUS247 IXYS Semiconductor

IXYS SEMICONDUCTORSKU:IXFR36N60P Bestelcode:1300099

Prijs:
Actie prijs€24,64

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (344 units)

Documenten en downloads

Omschrijving

IXYS SEMICONDUCTOR - IXFR36N60P - Power MOSFET, N Channel, 600 V, 20 A, 0.2 ohm, ISOPLUS-247, Through Hole

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 20A
  • Drain Source Voltage Vds: 600V
  • On Resistance Rds(on): 0.2ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 5V
  • Power Dissipation Pd: 208W
  • Transistor Case Style: ISOPLUS-247
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (12-Jan-2017)
  • Capacitance Ciss Typ: 5800pF
  • Current Id Max: 20A
  • Isolation Voltage: 2.5kV
  • N-channel Gate Charge: 102nC
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Reverse Recovery Time trr Max: 200ns
  • Rth: 0.6
  • Termination Type: Through Hole
  • Voltage Vds Typ: 600V
  • Voltage Vgs Max: 30V
  • Voltage Vgs Rds on Measurement: 10V
