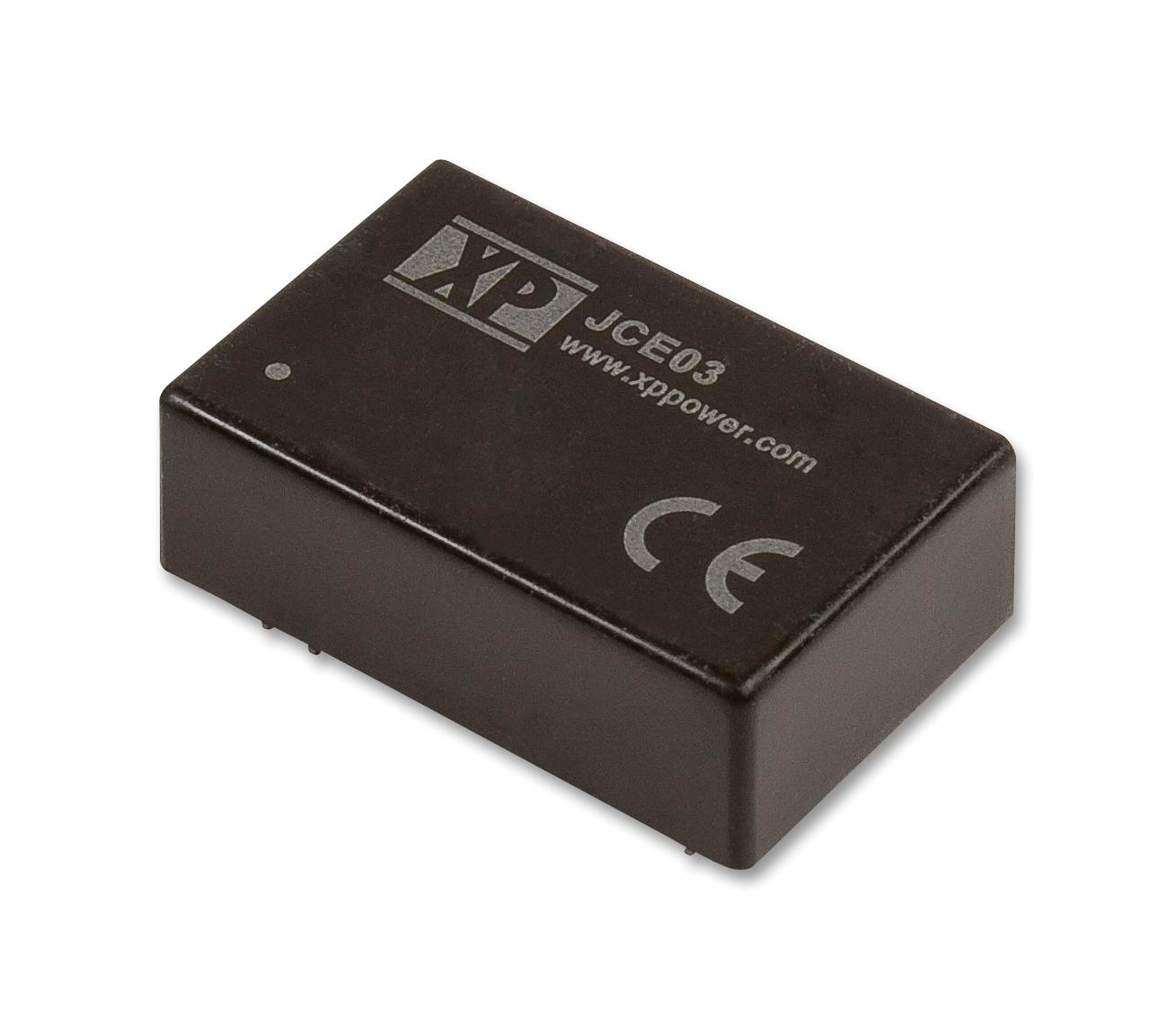

XP POWER - JCE0348D12-H - Isolated Through Hole DC/DC Converter, 3kV Isolation, ITE, 2:1, 3 W, 2 Output, 12 V, 125 mA
- No. of Outputs: 2 Output
- Output Power Max: 3W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 125mA
- Output Voltage - Output 2: -12V
- Output Current - Output 2: 125mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: JCE03 Series
- Input Voltage DC Min: 36V
- Input Voltage DC Max: 75V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 31.75mm
- Height: 10.16mm
- Depth: 20.32mm
- SVHC: No SVHC (15-Jan-2018)
- No. of Outputs: 2Outputs
