Omschrijving

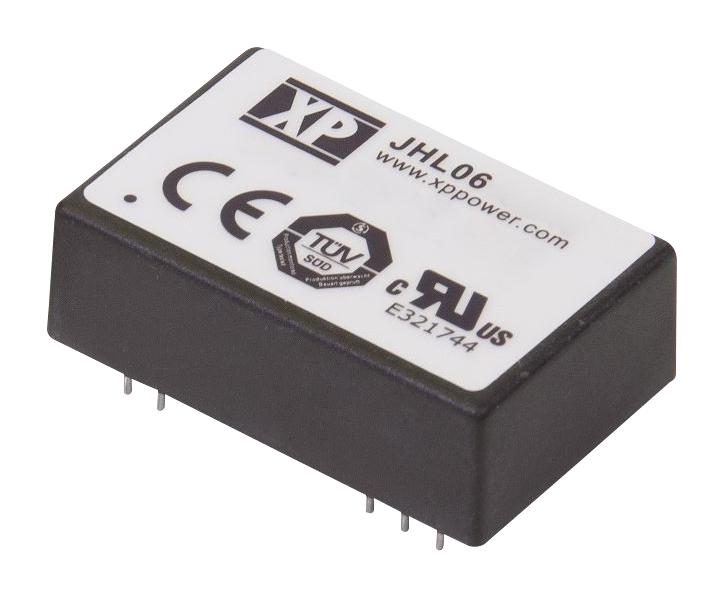

XP POWER - JHL0612S15 - Isolated Through Hole DC/DC Converter, Medical, 2:1, 6 W, 1 Output, 15 V, 400 mA
- No. of Outputs: 1 Output
- Output Power Max: 6W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 400mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: JHL06 Series
- Input Voltage DC Min: 10V
- Input Voltage DC Max: 17V
- DC / DC Converter Output Type: Fixed, Adjustable
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.32mm
- Height: 10.2mm
- Depth: 31.75mm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: CSA 22.2 No. 60601, IEC 60601, UL
