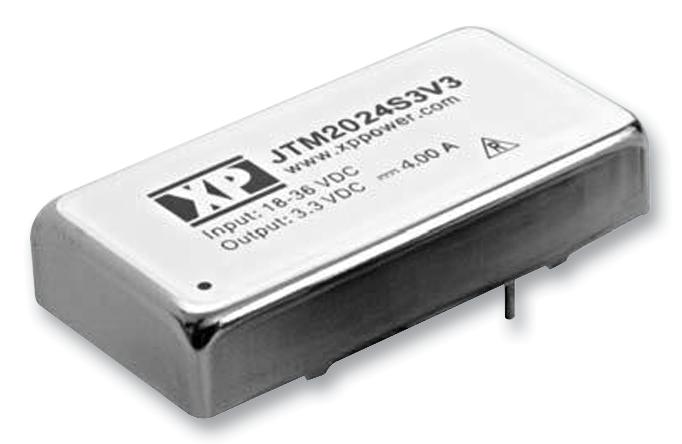

XP POWER - JTM2024S3V3 - Isolated Through Hole DC/DC Converter, 4:1 Input, ITE, 4:1, 20 W, 1 Output, 3.3 V, 5.5 A
- No. of Outputs: 1 Output
- Output Power Max: 20W
- Output Voltage - Output 1: 3.3V
- Output Current - Output 1: 5.5A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: XP Power JTM Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 25.4mm
- Height: 10.1mm
- Depth: 50.8mm
- SVHC: No SVHC (15-Jan-2018)
- Efficiency: 89%
- External Depth: 25.4mm
- External Length / Height: 10.16mm
- External Width: 50.8mm
- Isolation Voltage: 1.6kV
- No. of Outputs: 1Outputs
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Output Ripple Voltage pk-pk: 75mV
- Power Rating: 20W
- Supply Voltage: 24V
- Weight: 30g
