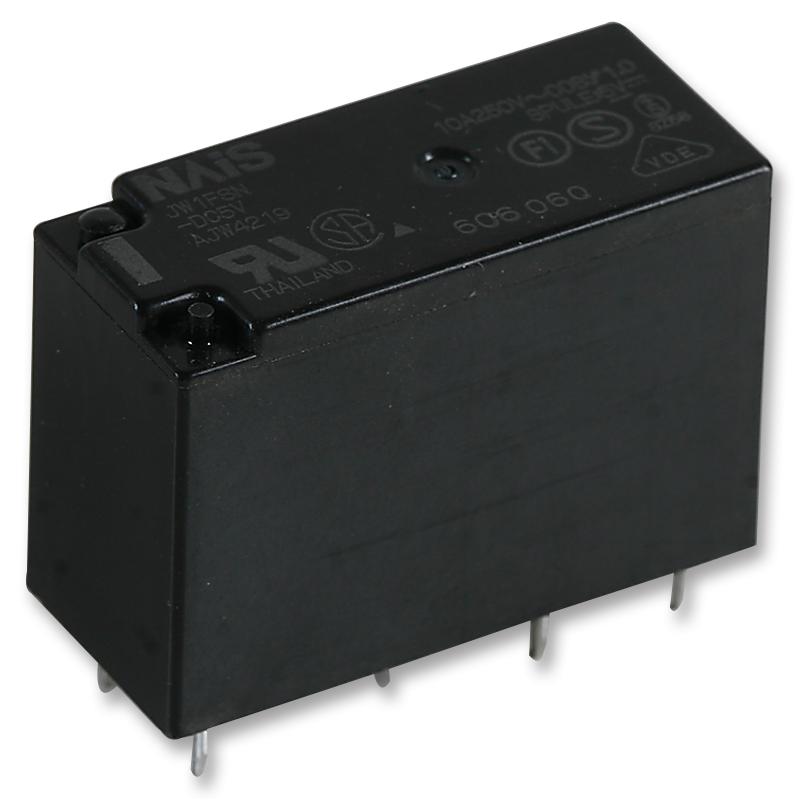

JW1FSN-DC12V Relay, SPDT, 277VAC, 30Vdc, 5A Panasonic

PANASONICSKU:JW1FSN-DC12V Bestelcode:1448356

Prijs:
Actie prijs€5,43

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1748 units)

Documenten en downloads

Omschrijving

PANASONIC - JW1FSN-DC12V - General Purpose Relay, JW Series, Power, Non Latching, SPDT, 12 VDC, 10 A

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Contact Current: 10A
  • Product Range: JW Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 277VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Nickel
  • Coil Resistance: 270ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Approval Bodies: CSA, SEMKO, SETI, SEV, TUV, VDE
  • Approval Category: UL Recognised
  • Approvals & Standards: CSA, UL, VDE
  • Coil Current: 44mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 10A
  • Contact Current Max: 10A
  • Contact Resistance: 100mohm
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 530mW
  • External Depth: 12.8mm
  • External Height: 20mm
  • External Length / Height: 20mm
  • External Width: 28.6mm
  • Insulation Resistance: 1000Mohm
  • Insulation Resistance Voltage: 500VDC
  • Nom Operating Power: 530mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 15ms
  • Relay Type: Power - General Purpose
