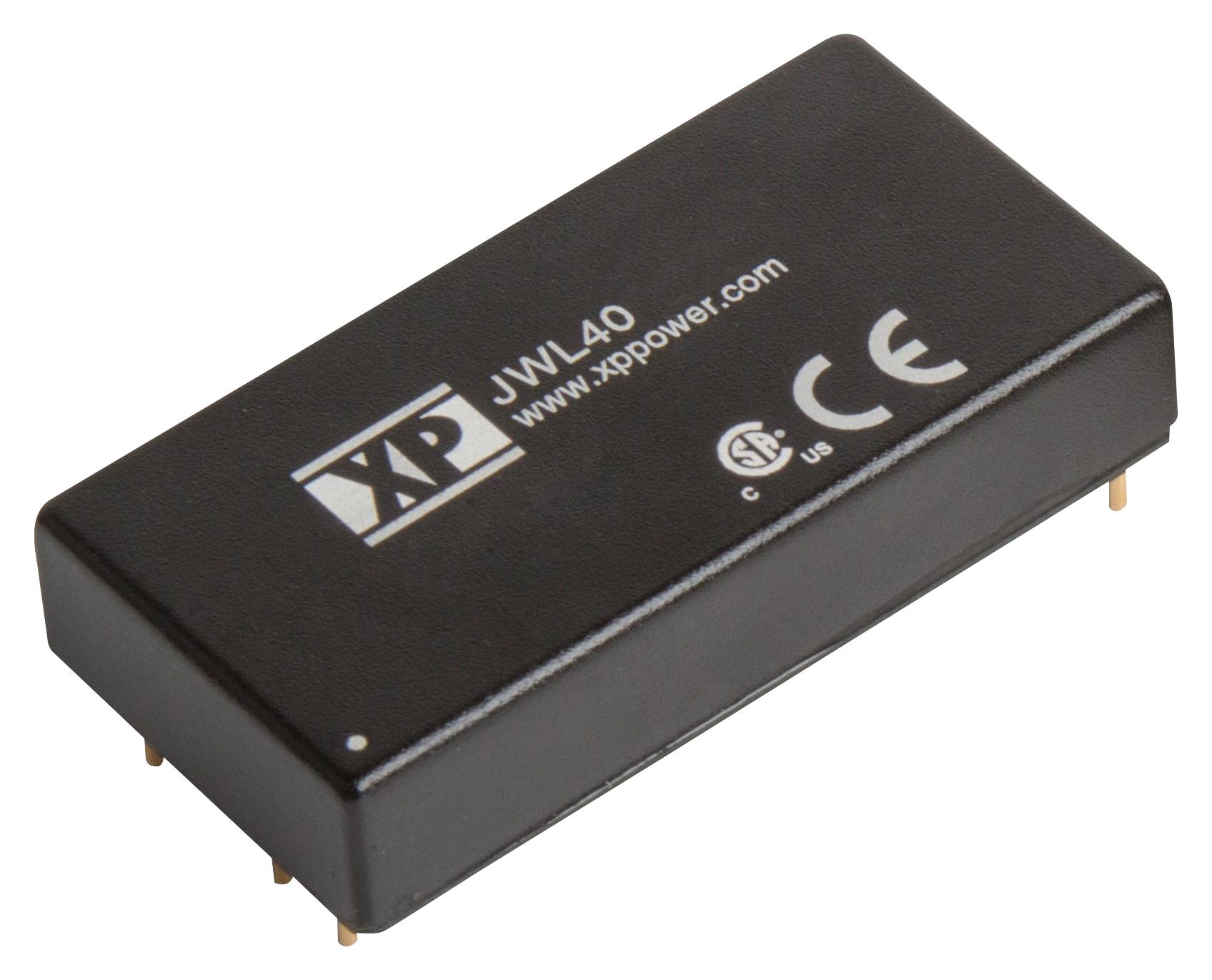

XP POWER - JWL4048D15 - Isolated Through Hole DC/DC Converter, ITE, 4:1, 40 W, 2 Output, 15 V, 1.33 A
- No. of Outputs: 2 Output
- Output Power Max: 40W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 1.33A
- Output Voltage - Output 2: -15V
- Output Current - Output 2: 1.33A
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: JWL40 Series
- Input Voltage DC Min: 18V
- Input Voltage DC Max: 75V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 25.4mm
- Height: 10.2mm
- Depth: 50.8mm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: IEC, UL
