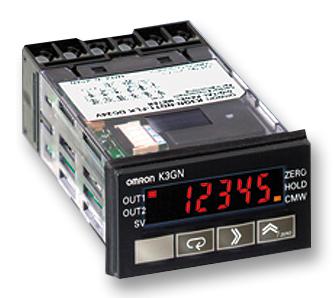

OMRON - K3GN-1001A - Digital Panel Meter, 1/32 DIN, 5 Digits, DC Current / DC Voltage, 2 Relay Output
- No. of Digits / Alpha: 5
- Meter Function: DC Current / DC Voltage
- Meter Range: 0mA to 20mA, 1V to 5V, -5V to +5V, -10V to +10V
- Digit Height: 7mm
- Panel Cutout Height: 22.2mm
- Panel Cutout Width: 45mm
- Supply Voltage Min: -
- Supply Voltage Max: -
- Operating Temperature Min: -10°C
- Operating Temperature Max: 55°C
- Product Range: -
- External Depth: 80mm
- External Length / Height: 24mm
- External Width: 48mm
- Operating Temperature Range: -10°C to +55°C
- Power Consumption: 2.5W
- Supply Voltage V DC: 24VDC
