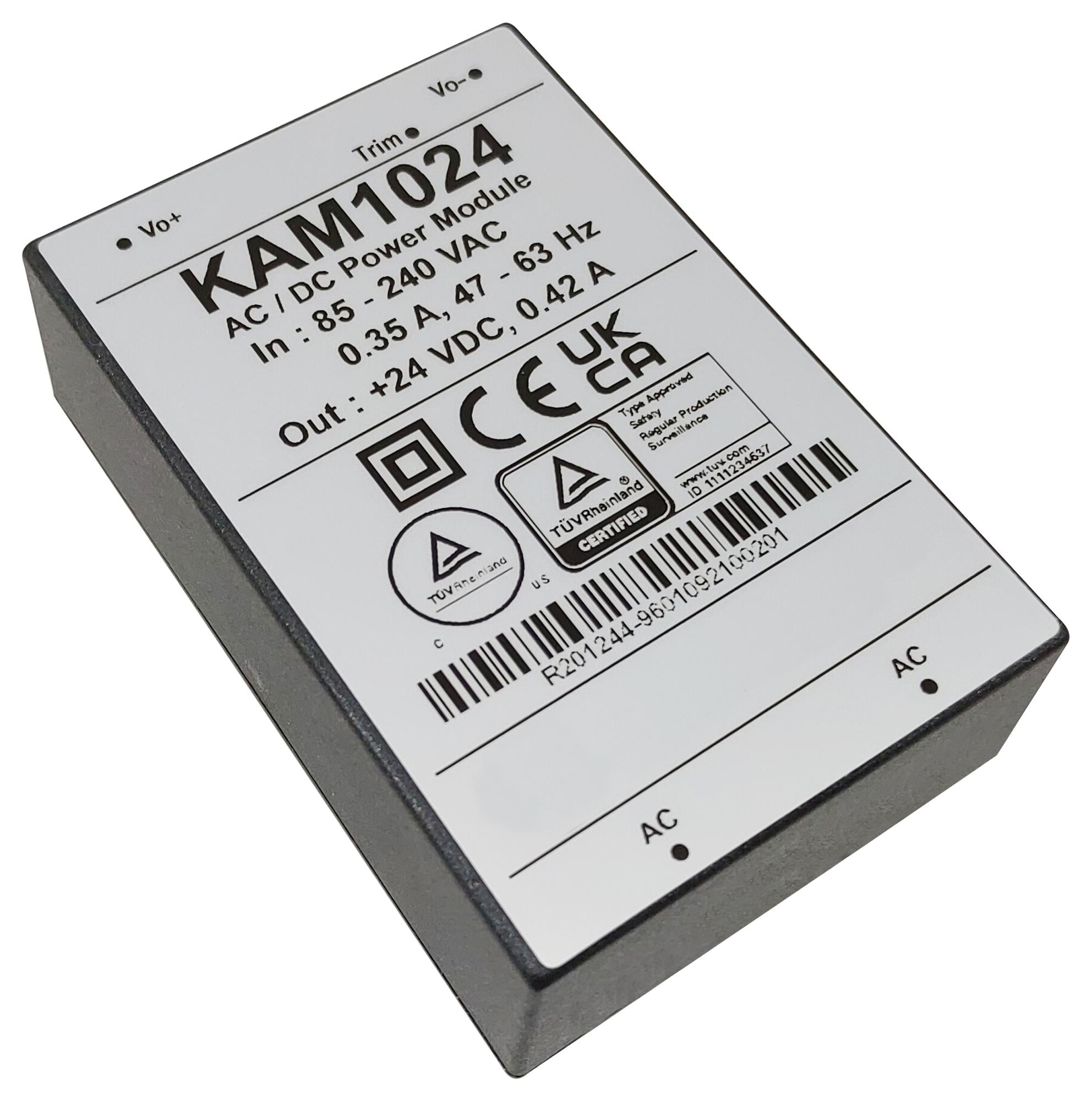

KAM1024 PSU, Encapsulated, 10w, 24V multicomp

MULTICOMPSKU:KAM1024 Bestelcode:1181193

Prijs:
Actie prijs€45,86

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (253 units)

Documenten en downloads

Omschrijving

MULTICOMP - KAM1024 - AC/DC PCB Mount Power Supply (PSU), Encapsulated, ITE, 1 Output, 10 W, 24 V, 420 mA

  • No. of Outputs: 1 Output
  • Output Power Max: 10W
  • Output Voltage - Output 1: 24V
  • Output Current - Output 1: 420mA
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Power Supply Output Type: Fixed
  • Input Voltage VAC: 85V AC to 265V AC
  • Width: 50.8mm
  • Height: 22.6mm
  • Depth: 76.2mm
  • Product Range: -
  • SVHC: No SVHC (07-Jul-2017)
  • Applications: General Purpose
  • Approval Bodies: CE, TUV, UL
  • Efficiency: 78%
  • External Depth: 76.2mm
  • External Length / Height: 22.6mm
  • External Width: 50.8mm
  • Frequency Max: 63Hz
  • Frequency Min: 47Hz
  • Input Frequency: 63Hz
  • Input Voltage: 265VAC
  • Input Voltage AC Max: 265V
  • Input Voltage AC Min: 85V
  • Isolation Voltage: 3000VAC
  • Length: 76.2mm
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 71°C
  • Operating Temperature Min: -20°C
  • Output Current Max: 420mA
  • Output Power: 10W
  • Power Rating: 10W
  • Power Supply Type: Switch Mode
  • Storage Temperature Max: 100°C
  • Storage Temperature Min: -40°C
  • Supply Voltage: 230V
