KP-1608SURC LED, Red, 230MCD, 630nm, 0603 KINGBRIGHT

KINGBRIGHTSKU:KP-1608SURC Bestelcode:8529868

Prijs:
Actie prijs€0,43

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (49280 units)

Documenten en downloads

Omschrijving

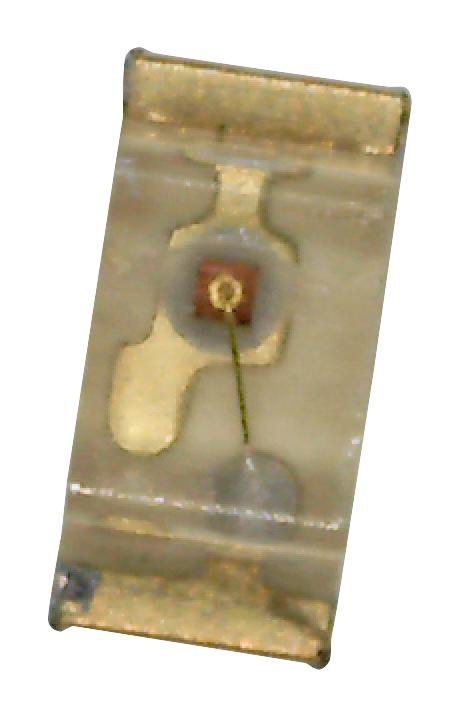

KINGBRIGHT - KP-1608SURC - LED, Low Power, Red, SMD, 0603, 20 mA, 1.9 V, 630 nm

  • LED Colour: Red
  • LED Mounting: SMD
  • LED Case Size: 0603
  • Forward Current If: 20mA
  • Forward Voltage: 1.9V
  • Wavelength Typ: 628nm
  • Luminous Intensity: 150mcd
  • Viewing Angle: 120°
  • Lens Shape: Rectangular
  • Product Range: Hyper Red LED
  • Automotive Qualification Standard: -
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (15-Jan-2019)
  • Dominant Wavelength: 628nm
  • External Depth: 0.8mm
  • External Length / Height: 1.1mm
  • External Width: 1.6mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.5V
  • Height: 1.1mm
  • LED / Lamp Size: 1.2mm x 0.8mm
  • LED Type: Standard
  • Luminous Intensity @ If Min: 70mcd
  • Luminous Intensity Typ: 200mcd
  • Material: InGaAIP
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • PIV Max: 5V
  • Peak Wavelength: 640nm
  • Reverse Leakage Current Max: 10µA
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Typ: 1.9V
