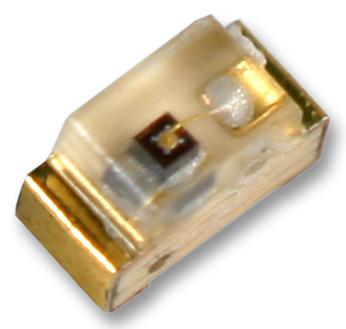

KP-1608SYC LED, 0.8mm X 1.2mm, Yellow, 80mcd, 588NM KINGBRIGHT

KINGBRIGHTSKU:KP-1608SYC Bestelcode:8529841

Prijs:
Actie prijs€0,42

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (100 units)

Documenten en downloads

Omschrijving

KINGBRIGHT - KP-1608SYC - LED, Low Power, Yellow, SMD, 0603, 20 mA, 2 V, 588 nm

  • LED Colour: Yellow
  • LED Mounting: SMD
  • LED Case Size: 0603
  • Forward Current If: 20mA
  • Forward Voltage: 2V
  • Wavelength Typ: 588nm
  • Luminous Intensity: 80mcd
  • Viewing Angle: 120°
  • Lens Shape: Rectangular
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (15-Jan-2019)
  • Bulb Size: 0.8mm x 1.2mm
  • Dominant Wavelength: 588nm
  • External Depth: 0.8mm
  • External Length / Height: 1.1mm
  • External Width: 1.6mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.5V
  • LED / Lamp Size: 1.2mm x 0.8mm
  • LED Type: Standard
  • Luminous Intensity @ If Min: 40mcd
  • Luminous Intensity Typ: 80mcd
  • Material: InGaAIP
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • PIV Max: 5V
  • Peak Wavelength: 590nm
  • Reverse Leakage Current Max: 10µA
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Typ: 2V
