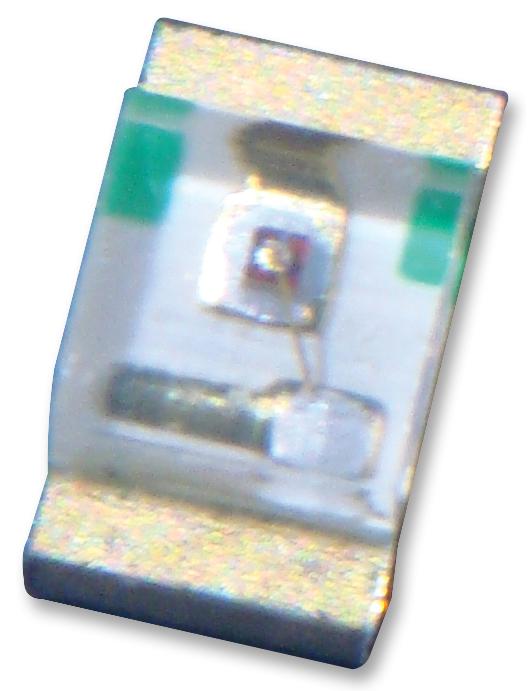

KP-2012SYCK LED, ALINGAP, SMD, Yellow KINGBRIGHT

KINGBRIGHTSKU:KP-2012SYCK Bestelcode:1318246

Prijs:
Actie prijs€0,30

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (21000 units)

Documenten en downloads

Omschrijving

KINGBRIGHT - KP-2012SYCK - LED, Low Power, Yellow, SMD, 0805 [2012 Metric], 20 mA, 2 V, 590 nm

  • LED Colour: Yellow
  • LED Mounting: SMD
  • LED Case Size: 0805
  • Forward Current If: 20mA
  • Forward Voltage: 2V
  • Wavelength Typ: 590nm
  • Luminous Intensity: 150mcd
  • Viewing Angle: 120°
  • Lens Shape: Rectangular
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (15-Jan-2019)
  • Current If Luminous Intensity: 20mA
  • Dominant Wavelength: 590nm
  • External Depth: 1.25mm
  • External Length / Height: 1.1mm
  • External Width: 2mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.5V
  • LED / Lamp Size: 1.3mm x 1.25mm
  • LED Type: Standard
  • Luminous Intensity @ If Min: 25mcd
  • Luminous Intensity Typ: 120mcd
  • Material: InGaAlP
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • PIV Max: 5V
  • Peak Forward Current: 20mA
  • Peak Wavelength: 590nm
  • Voltage Vf Typ: 2V
