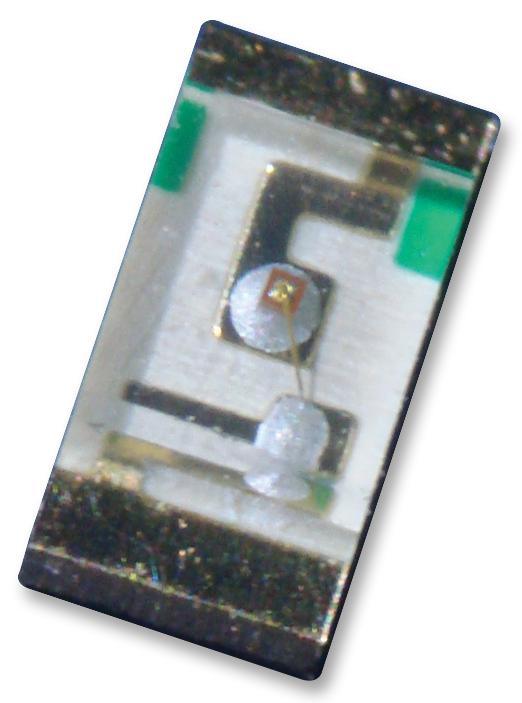

KP-3216SGC LED, 1.6mm X 2mm, Green, 15mcd, 568NM KINGBRIGHT

KINGBRIGHTSKU:KP-3216SGC Bestelcode:8530033

Prijs:
Actie prijs€0,37

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (33888 units)

Documenten en downloads

Omschrijving

KINGBRIGHT - KP-3216SGC - LED, Low Power, Green, SMD, 1206 (3216 Metric), 20 mA, 2.2 V, 568 nm

  • LED Colour: Green
  • LED Mounting: SMD
  • LED Case Size: 1206 (3216 Metric)
  • Forward Current If: 20mA
  • Forward Voltage: 2.2V
  • Wavelength Typ: 568nm
  • Luminous Intensity: 12mcd
  • Viewing Angle: 120°
  • Lens Shape: Rectangular
  • Product Range: SMD Green LED
  • Automotive Qualification Standard: -
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (15-Jan-2019)
  • Bulb Size: 1.6mm x 3.2mm
  • Current If Luminous Intensity: 20mA
  • Dominant Wavelength: 568nm
  • External Depth: 1.6mm
  • External Length / Height: 1.1mm
  • External Width: 3.2mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.2V
  • LED / Lamp Size: 2mm x 1.6mm
  • LED Type: Standard
  • Luminous Intensity @ If Min: 4mcd
  • Luminous Intensity Typ: 15mcd
  • Material: GaP
  • No. of Pins: 2Pins
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +80°C
  • PIV Max: 5V
  • Peak Wavelength: 565nm
  • Reverse Leakage Current Max: 10µA
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Typ: 2.2V
