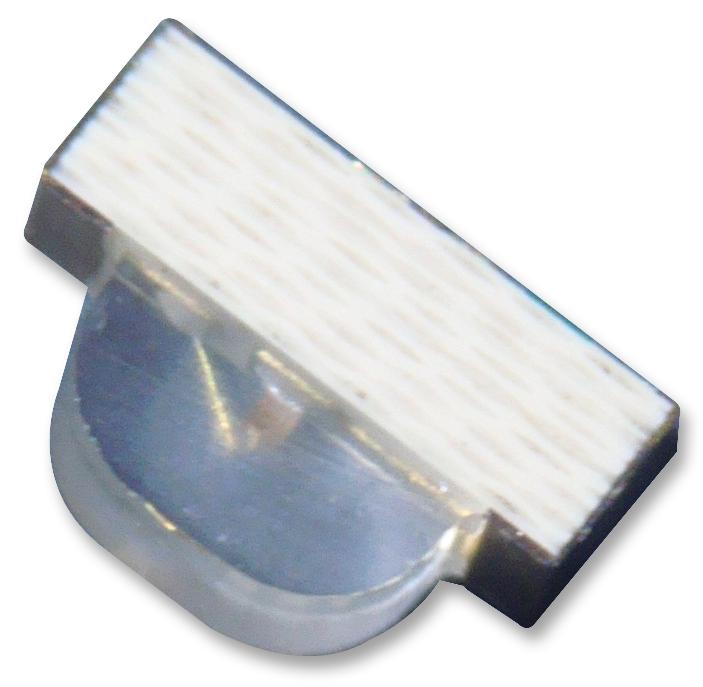

kPa-3010SGC LED, Side View, SMD, Green, 12MCD KINGBRIGHT

KINGBRIGHTSKU:KPA-3010SGC Bestelcode:8530335

Prijs:
Actie prijs€0,45

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (16688 units)

Documenten en downloads

Omschrijving

KINGBRIGHT - KPA-3010SGC - LED, Right Angle, Green, SMD, 3mm x 1mm, 20 mA, 2.2 V, 568 nm

  • LED Colour: Green
  • LED Mounting: SMD
  • LED Case Size: 3mm x 1mm
  • Forward Current If: 20mA
  • Forward Voltage: 2.2V
  • Wavelength Typ: 568nm
  • Luminous Intensity: 12mcd
  • Viewing Angle: 120°
  • Lens Shape: Rectangular
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (15-Jan-2019)
  • Dominant Wavelength: 568nm
  • External Depth: 1mm
  • External Length / Height: 2mm
  • External Width: 3mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.5V
  • LED / Lamp Size: 2mm
  • LED Type: Standard
  • Lens Colour: Water clear
  • Light Output Orientation: Side Emitting
  • Luminous Intensity @ If Min: 3mcd
  • Luminous Intensity Typ: 12mcd
  • Material: GaP
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • PIV Max: 5V
  • Peak Wavelength: 565nm
  • Reverse Leakage Current Max: 10µA
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Typ: 2.2V
