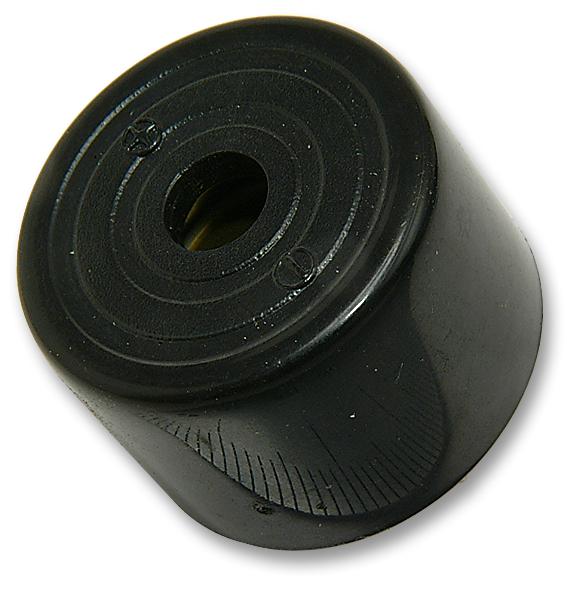

KPEG-204 Piezo Buzzer KINGSTATE

KINGSTATESKU:KPEG-204 Bestelcode:1193680

Prijs:
Actie prijs€8,74

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1427 units)

Documenten en downloads

Omschrijving

KINGSTATE - KPEG-204 - Transducer, Piezo, Buzzer, Buzzer, Continuous, 3 V, 20 V, 9 mA, 86 dB

  • Transducer Function: Buzzer
  • Tones: Continuous
  • Supply Voltage Min: 3V
  • Supply Voltage Max: 20V
  • Operating Current Max: 9mA
  • Sound Level SPL: 86dB
  • Sound Level Distance: 30cm
  • Resonant Frequency: 3.4kHz
  • Product Range: -
  • SVHC: No SVHC (20-Jun-2016)
  • Colour: Black
  • Current Consumption: 9mA
  • Current Rating: 9mA
  • Device Type: Piezo Alarm
  • External Diameter: 23.8mm
  • External Height: 16mm
  • External Length / Height: 16mm
  • Fixing Centres: 15mm
  • Height: 16mm
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Pin Diameter: 0.8mm
  • Pulsing Frequency: 3.4kHz
  • Supply Voltage: 12V
  • Supply Voltage DC Max: 20V
  • Supply Voltage DC Min: 3V
  • Weight: 5g
