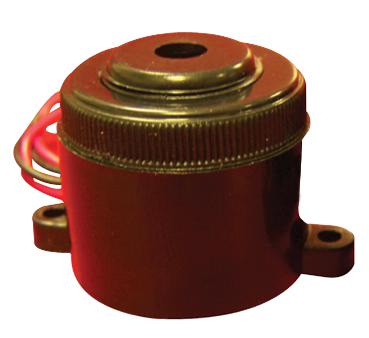

KPEG250 Piezo Buzzer, Wire Type KINGSTATE

KINGSTATESKU:KPEG250 Bestelcode:1502703

Prijs:
Actie prijs€7,76

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1781 units)

Documenten en downloads

Omschrijving

KINGSTATE - KPEG250 - Transducer, Piezo, Buzzer, Buzzer, Continuous, 3 V, 28 V, 6 mA, 85 dB

  • Transducer Function: Buzzer
  • Tones: Continuous
  • Supply Voltage Min: 3V
  • Supply Voltage Max: 28V
  • Operating Current Max: 6mA
  • Sound Level SPL: 85dB
  • Sound Level Distance: 30cm
  • Resonant Frequency: 3.5kHz
  • Product Range: -
  • SVHC: No SVHC (20-Jun-2016)
  • Current Consumption: 6mA
  • Current Rating: 6mA
  • External Diameter: 28mm
  • External Height: 25.4mm
  • External Length / Height: 25.4mm
  • Fixing Centres: 33.5mm
  • Frequency: 3.5kHz
  • Height: 25.4mm
  • Lead Length: 150mm
  • Material: ABS UL-94 1/16" HB HIGH HEAT (BLACK)
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Supply Voltage DC Max: 28V
  • Supply Voltage DC Min: 3V
  • Supply Voltage V DC: 12V
  • Weight: 9.5g
