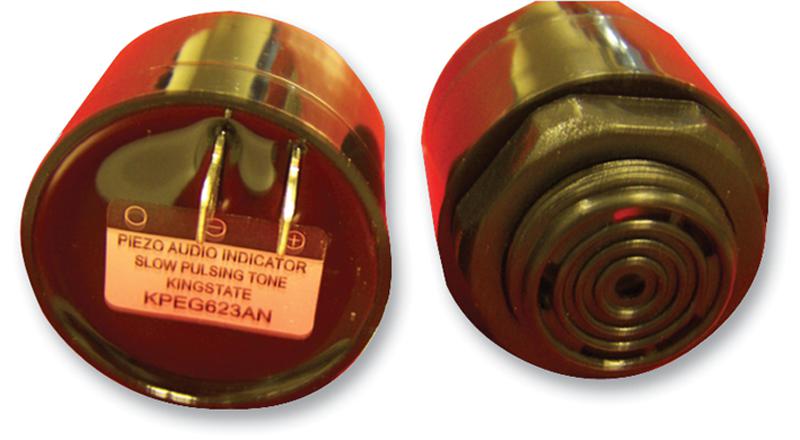

KPEG623AN Piezo Buzzer, Panel Mount KINGSTATE

KINGSTATESKU:KPEG623AN Bestelcode:1502707

Prijs:
Actie prijs€28,64

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (255 units)

Documenten en downloads

Omschrijving

KINGSTATE - KPEG623AN - Transducer, Piezo, Buzzer, Buzzer, Slow Pulse, 60 V, 250 V, 16 mA, 82 dB

  • Transducer Function: Buzzer
  • Tones: Slow Pulse
  • Supply Voltage Min: 60V
  • Supply Voltage Max: 250V
  • Operating Current Max: 16mA
  • Sound Level SPL: 82dB
  • Sound Level Distance: 30cm
  • Resonant Frequency: 2.8kHz
  • Product Range: -
  • SVHC: No SVHC (20-Jun-2016)
  • Current Consumption: 16mA
  • Current Rating: 16mA
  • External Diameter: 42.5mm
  • External Height: 42mm
  • External Length / Height: 42mm
  • Height: 42mm
  • Material: ABS UL-94 1/16" HB HIGH HEAT (BLACK)
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Pulsing Frequency: 1.2Hz
  • Supply Voltage DC Max: 250V
  • Supply Voltage DC Min: 60V
  • Supply Voltage V DC: 220V
  • Weight: 51g
