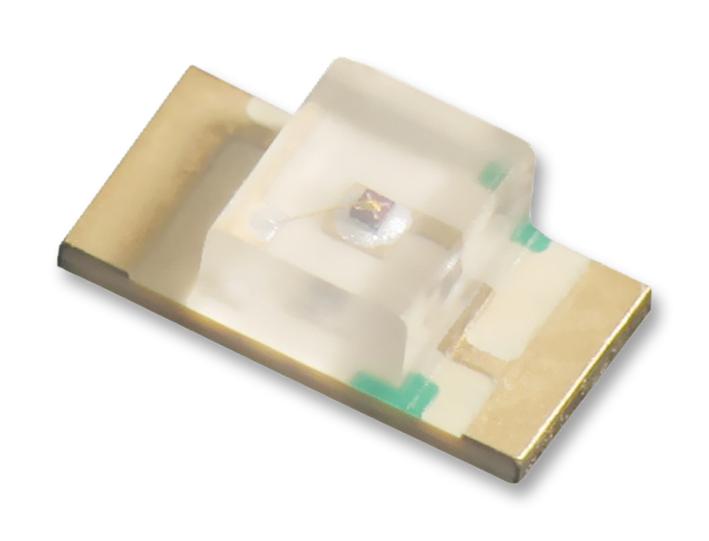

KPTD-3216SURCK LED, 1206, Red, 1.5cd, 630nm KINGBRIGHT

KINGBRIGHT - KPTD-3216SURCK - LED, Low Power, Red, SMD, 1206 (3216 Metric), 20 mA, 1.95 V, 630 nm

• LED Colour: Red
• LED Mounting: SMD
• LED Case Size: 1206 (3216 Metric)
• Forward Current If: 20mA
• Forward Voltage: 1.95V
• Wavelength Typ: 630nm
• Luminous Intensity: 800mcd
• Viewing Angle: 35°
• Lens Shape: Round
• Product Range: -
• Automotive Qualification Standard: -
• MSL: MSL 3 - 168 hours
• SVHC: No SVHC (15-Jan-2019)
• Dominant Wavelength: 630nm
• External Depth: 1.6mm
• External Length / Height: 1.8mm
• External Width: 3.2mm
• Forward Current If Max: 20mA
• Forward Voltage VF Max: 2.5V
• LED / Lamp Size: 1.6mm
• LED Type: Standard
• Luminous Intensity @ If Min: 700mcd
• Material: InGaAIP
• No. of Pins: 2Pins
• Operating Temperature Max: 85°C
• Operating Temperature Min: -40°C
• Operating Temperature Range: -40°C to +85°C
• PIV Max: 5V
• Peak Wavelength: 650nm
• Reverse Leakage Current Max: 10µA
• Storage Temperature Max: 85°C
• Storage Temperature Min: -40°C
• Voltage Vf Typ: 1.95V
