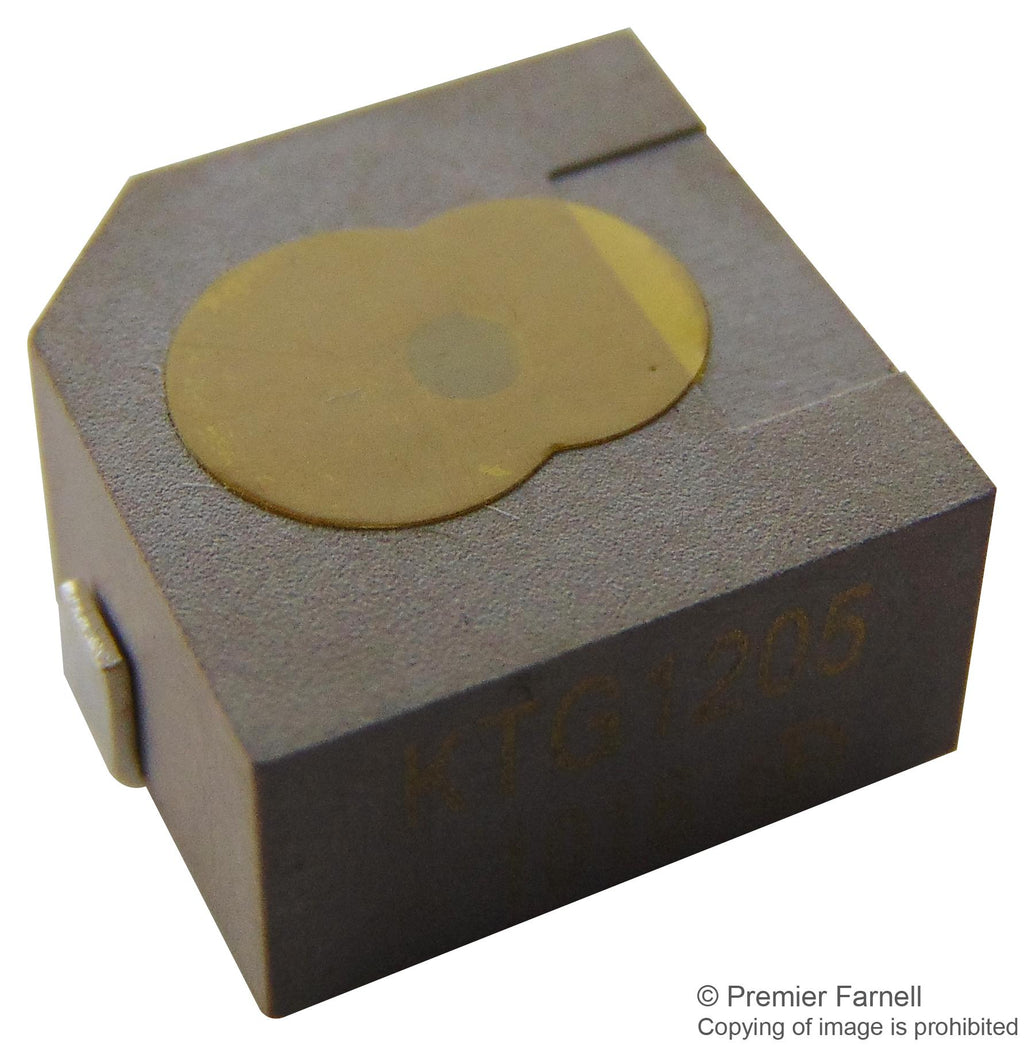

KINGSTATE - KTG1205 - Transducer, Magnetic, 3 V, 40 mA, 87 dB, 2.4 kHz
- Transducer Function: Buzzer
- Supply Voltage Min: 3V
- Supply Voltage Max: -
- Current Rating: 40mA
- Tones: -
- Sound Level SPL: 87dB
- Resonant Frequency: 2.4kHz
- Transducer Mounting: -
- Product Range: -
- SVHC: No SVHC (20-Jun-2016)
- Coil Resistance: 45ohm
- Current Max: 40mA
- External Length / Height: 7.1mm
- External Width: 12.8mm
- Frequency: 2.4kHz
- Height: 7.1mm
- Length: 12.8mm
- Material: PPS (S-206)
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Sound Level Distance: 10cm
- Supply Voltage: 5V
- Supply Voltage AC Max: 8V
- Supply Voltage AC Min: 3V
- Supply Voltage Max: 8V
- Weight: 2g
