L02R3000F1 LED, 3mm, Green, 3.7MCD, 567NM LED Technology

LED TECHNOLOGYSKU:L02R3000F1 Bestelcode:1208845

Prijs:
Actie prijs€0,40

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1909 units)

Documenten en downloads

Omschrijving

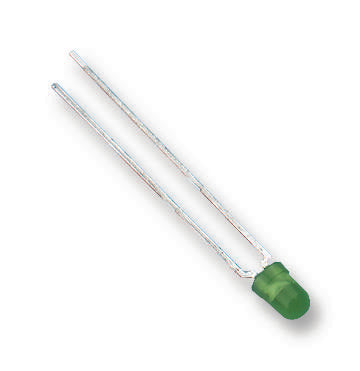

LED TECHNOLOGY - L02R3000F1 - LED, Green, Through Hole, T-1 (3mm), 20 mA, 2.1 V, 567 nm

  • LED Colour: Green
  • LED Mounting: Through Hole
  • LED Case Size: T-1 (3mm)
  • Forward Current If: 20mA
  • Forward Voltage: 2.1V
  • Wavelength Typ: 567nm
  • Luminous Intensity: 3.7mcd
  • Viewing Angle: 74°
  • Lens Shape: Round
  • Product Range: LXXR3000FM Series
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jun-2015)
  • Bulb Size: T-1 (3mm)
  • Current If Luminous Intensity: 20mA
  • Dominant Wavelength: 567nm
  • External Diameter: 3.1mm
  • External Length / Height: 5.08mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.1V
  • LED / Lamp Size: 3mm / T-1
  • LED Type: Standard
  • Lead Cross-section Depth: 0.5mm
  • Lead Cross-section Width: 0.5mm
  • Lead Length: 12.7mm
  • Lead Spacing: 2.29mm
  • Luminous Intensity Typ: 3.7mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +85°C
  • PIV Max: 5V
  • Peak Forward Current: 25mA
  • Peak Wavelength: 567nm
  • Voltage Vf Typ: 2.1V
