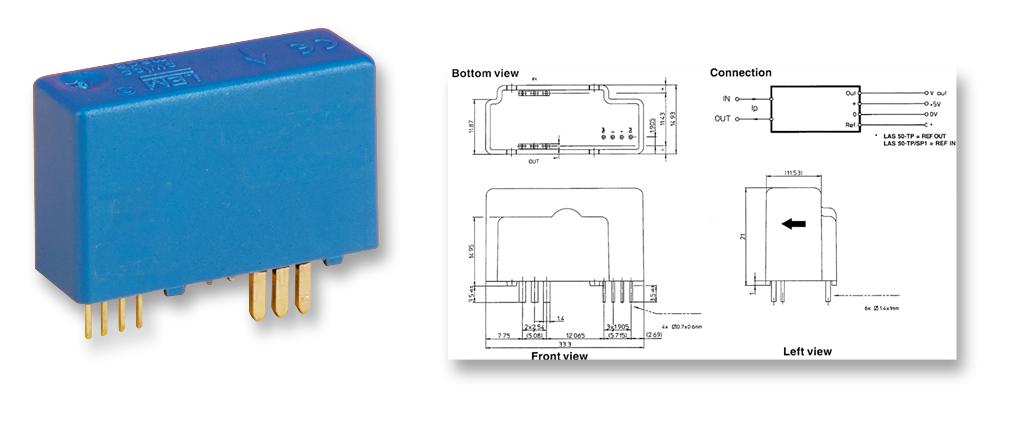

LEM - LAS 50-TP - Current Transducer, LAS Series, 50A, -150A to 150A, 1 %, Voltage Output, 4.75 Vdc to 5.25 Vdc
- Sensor Output: Voltage
- Supply Voltage DC Min: 4.75V
- Supply Voltage DC Max: 5.25V
- Current Measuring Range DC: -150A to 150A
- Current Measuring Range AC: -150A to 150A
- Response Time: 500ns
- Accuracy %: 1%
- Product Range: LAS Series
- SVHC: No SVHC (15-Jan-2018)
- Accuracy: 1%
- Current Consumption: 17mA
- Current Range AC: DC, AC, Pulsed, Mixed
- Current Range DC: DC, AC, Pulsed, Mixed
- External Depth: 14.93mm
- External Length / Height: 21mm
- External Width: 33.3mm
- Flammability Rating: UL 94-V0
- Frequency Max: 100kHz
- Frequency Min: 0Hz
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Output Current Max: 50A
- Output Current Min: 0A
- Output Voltage: 2.5V
- Percentage Accuracy +: 0.5%
- Percentage Accuracy -: 0.5%
- Supply Voltage Range DC: 4.75V to 5.25V
- Transducer Function: Current
