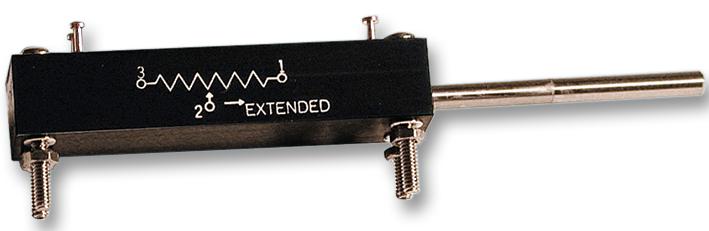

LCP12S-25-1K Potentiometer, Linear, 1K OHM ETI Systems

ETI SYSTEMSSKU:LCP12S-25-1K Bestelcode:1307085

Prijs:
Actie prijs€227,89

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

ETI SYSTEMS - LCP12S-25-1K - Linear Motion Potentiometer, 1 kohm, ± 20%, 400 mW, LCP12, Turret

  • Track Resistance: 1kohm
  • Power Rating: 400mW
  • Resistance Tolerance: ± 20%
  • Product Range: LCP12 Series
  • Track Taper: Linear
  • Temperature Coefficient: ± 400ppm/°C
  • SVHC: No SVHC (07-Jul-2017)
  • Adjustment Type: Slide
  • Linearity, +: 1%
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -30°C
  • Operating Temperature Range: -30°C to +105°C
  • Resistor Element Material: Conductive Plastic
  • Temperature Coeff. +: 400ppm/°C
  • Temperature Coeff. -: 400ppm/°C
  • Tolerance +: 20%
  • Tolerance -: 20%
