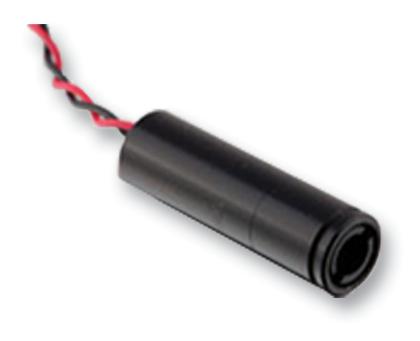

IMATRONIC - LDM115G/633/1 - Laser Module, 633 nm, 900 µW, 5 V, 4mm x 2mm, 70 mA
- Wavelength Typ: 633nm
- Output Power: 900µW
- Voltage Rating: 5V
- Laser Lens: -
- Laser Beam Size: 4mm x 2mm
- Supply Current: 70mA
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Beam Divergence: 0.5mrad
- External Diameter: 11mm
- External Length / Height: 37mm
- External Width: 11mm
- Height: 37mm
- Laser Class: Class 2
- Mean Time to Failure: 30000h
- Operating Temperature Max: 45°C
- Operating Temperature Min: -10°C
- Operating Temperature Range: -10°C to +45°C
- Peak Wavelength: 633nm
- Range: 35mm
- Storage Temperature Max: 85°C
- Storage Temperature Min: -40°C
- Supply Voltage Max: 5V
- Supply Voltage Min: 3.5V
