LDM115G/670/3 Laser Diode Module IMATRONIC

IMATRONICSKU:LDM115G/670/3 Bestelcode:1216291

Prijs:
Actie prijs€224,90

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (8 units)

Documenten en downloads

Omschrijving

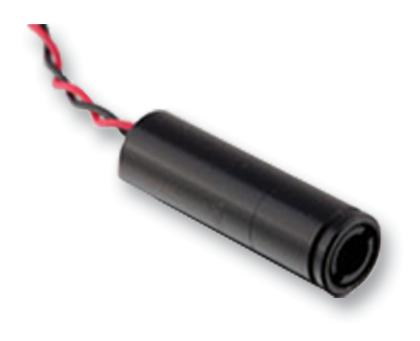

IMATRONIC - LDM115G/670/3 - Laser Module, 670 nm, 3 mW, 5 V, 4mm x 2mm, 70 mA

  • Wavelength Typ: 670nm
  • Output Power: 3mW
  • Voltage Rating: 5V
  • Laser Lens: -
  • Laser Beam Size: 4mm x 2mm
  • Supply Current: 70mA
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Beam Divergence: 0.5mrad
  • External Diameter: 11mm
  • External Length / Height: 37mm
  • External Width: 11mm
  • Laser Class: Class 3R
  • Mean Time to Failure: 150000h
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -10°C
  • Operating Temperature Range: -10°C to +55°C
  • Peak Wavelength: 670nm
  • Range: 35mm
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
  • Supply Voltage Max: 5V
  • Supply Voltage Min: 3.5V
