Omschrijving

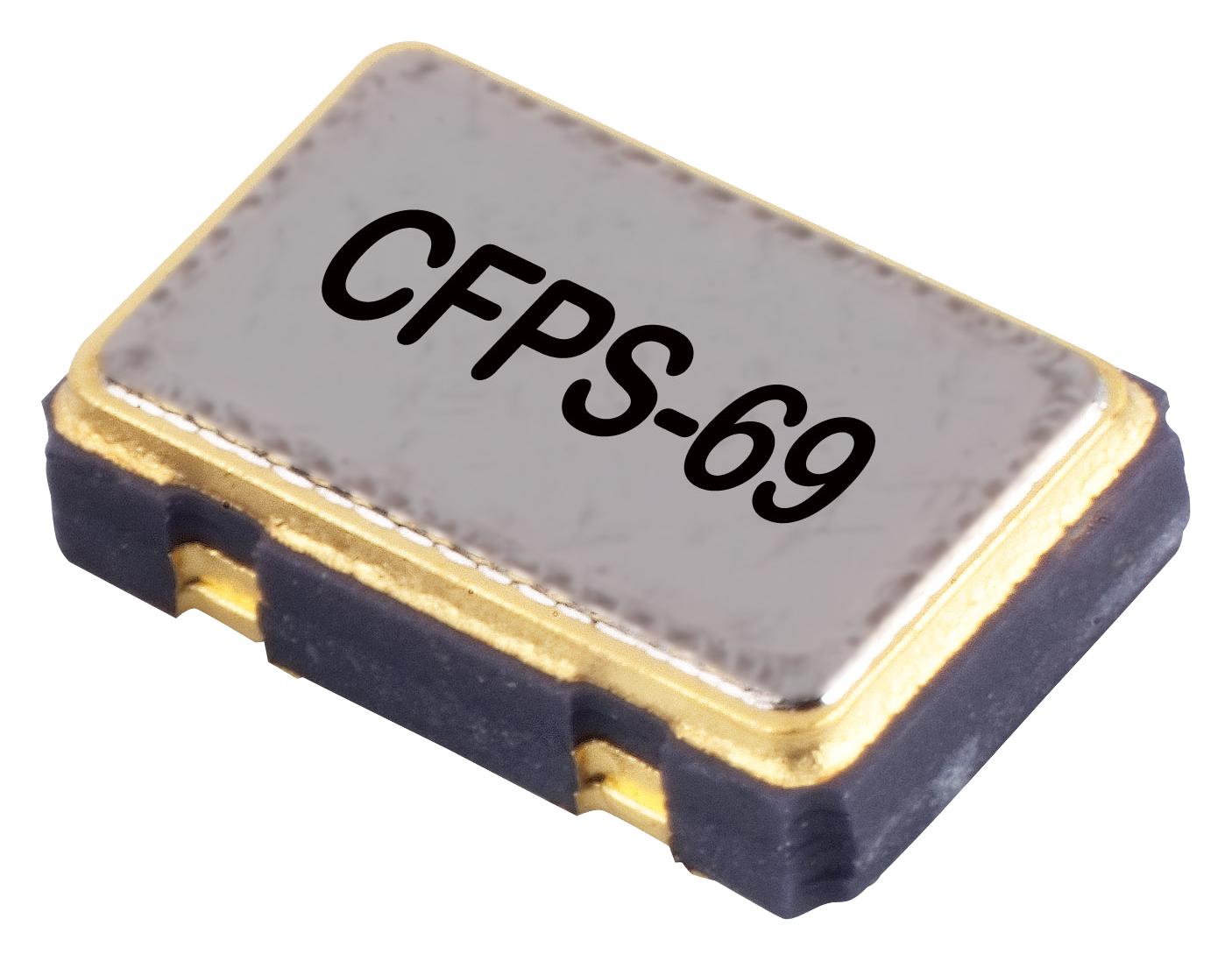

IQD FREQUENCY PRODUCTS - LFSPXO009581 - Oscillator, Crystal, 3.6864 MHz, 50 ppm, SMD, 5mm x 3.2mm, 3.3 V, CFPS-69 Series
- Frequency Nom: 3.6864MHz
- Frequency Stability + / -: 50ppm
- Oscillator Case: SMD, 5mm x 3.2mm
- Supply Voltage Nom: 3.3V
- Product Range: CFPS-69 Series
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Oscillator Output Compatibility: CMOS
- SVHC: No SVHC (15-Jan-2018)
- Crystal Case: CFPS-69
- Fall Time tf: 12ns
- Frequency: 3.6864MHz
- Frequency Accuracy + @: 50ppm
- Frequency Accuracy - @: 50ppm
- Frequency Stability: ± 50ppm
- Load Capacitance: 15pF
- No. of Pins: 4Pins
- Operating Temperature Range: -40°C to +85°C
- Output Frequency: 3.68MHz
- Resonator Case: SMD
- Rise Time: 12ns
- Supply Current Max: 2.5mA
- Temperature Stabilty: ± 50ppm
- Type: SPXO
