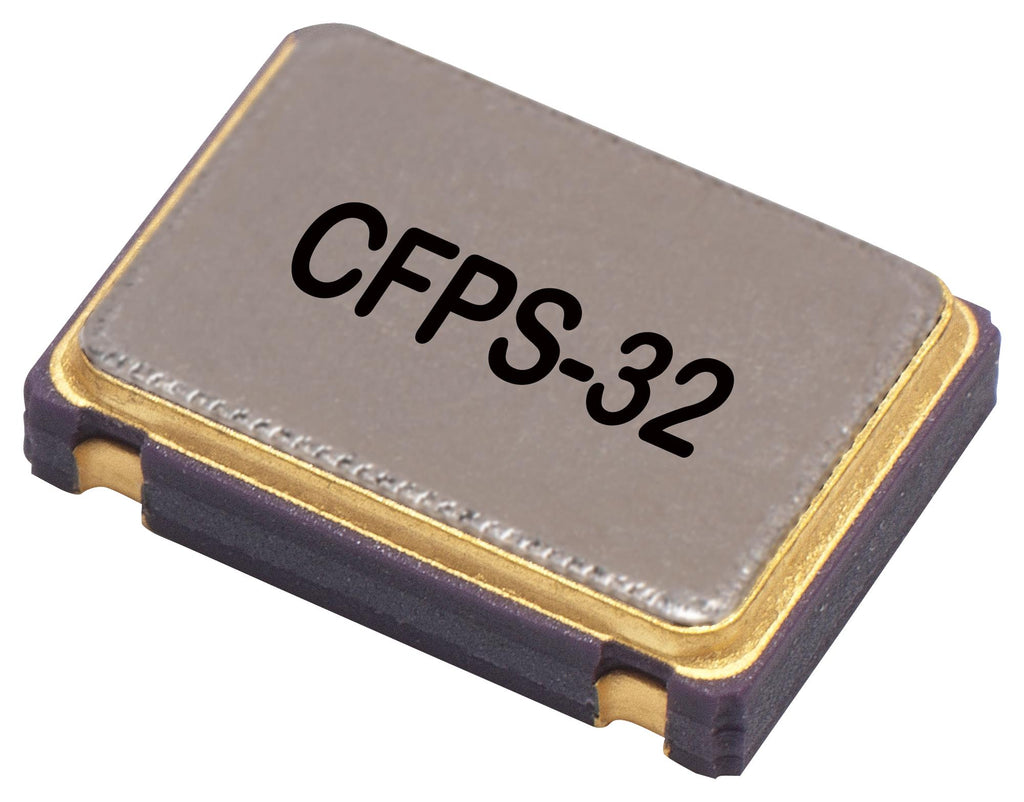

IQD FREQUENCY PRODUCTS - LFSPXO025921 - Oscillator, Crystal, 3.6864 MHz, 50 ppm, SMD, 7mm x 5mm, 2.5 V, CFPS-32 Series
- Frequency Nom: 3.6864MHz
- Frequency Stability + / -: 50ppm
- Oscillator Case: SMD, 7mm x 5mm
- Supply Voltage Nom: 2.5V
- Product Range: CFPS-32 Series
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Oscillator Output Compatibility: CMOS
- SVHC: No SVHC (15-Jan-2018)
- Accuracy: ± 50ppm
- Crystal Case: CFPS-32
- Duty Cycle Lower Limit: 45%
- Duty Cycle Upper Limit: 55%
- Fall Time tf: 5ns
- Frequency: 3.6864MHz
- Frequency Stability: ± 50ppm
- Load Capacitance: 15pF
- No. of Pins: 4Pins
- Operating Temperature Range: -40°C to +85°C
- Output Frequency: 3.6864MHz
- Resonator Case: SMD
- Rise Time: 5ns
- Supply Current Max: 10mA
- Temperature Stability + @: 50
- Temperature Stabilty: ± 50ppm
- Type: SPXO
