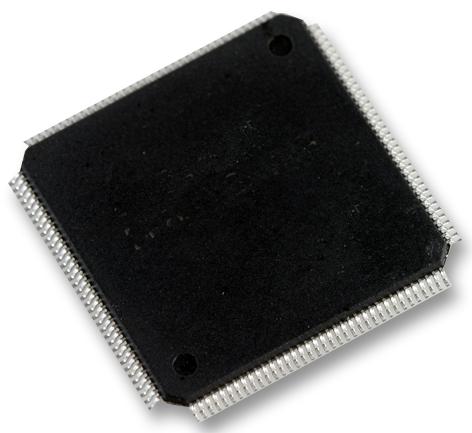

LFXP2-5E-5TN144C FPGA, 5K LUTS, 100 I/O, DSP, 144TQFP LATTICE SEMICONDUCTOR

LATTICE SEMICONDUCTOR - LFXP2-5E-5TN144C - FPGA, LatticeXP2, PLL, 100 I/O's, 435 MHz, 1.14 V to 1.26 V, TQFP-144

• No. of Logic Blocks: 5000
• No. of Macrocells: 2500
• FPGA Family: LatticeXP2
• Logic Case Style: TQFP
• No. of Pins: 144Pins
• No. of Speed Grades: 5
• Total RAM Bits: 169984
• No. of I/O's: 100I/O's
• Clock Management: PLL
• Core Supply Voltage Min: 1.14V
• Core Supply Voltage Max: 1.26V
• I/O Supply Voltage: 3.465V
• Operating Frequency Max: 435MHz
• Product Range: LFXP Series
• RoHS Phthalates Compliant: Yes
• MSL: MSL 3 - 168 hours
• SVHC: No SVHC (27-Jun-2018)
• Base Number: 2
• Core Supply Voltage Range: 1.14V to 1.26V
• Frequency: 311MHz
• I/O Interface Standard: Bus-LV, HSTL, LVCMOS, LVDS, LVTTL, PCI, RSDS, SSTL
• Logic IC Function: FPGA
• Operating Temperature Max: 85°C
• Operating Temperature Min: 0°C
• Operating Temperature Range: 0°C to +85°C
• Programmable Logic Type: FPGA
• Supply Voltage: 1.2V
• Termination Type: Surface Mount Device
