LG 5925.48 AC/DC 24V Relay, Safety, 3NO, SPST-NC, 230VAC, 3a DOLD

DOLDSKU:LG 5925.48 AC/DC 24V Bestelcode:9515232

Prijs:
Actie prijs€406,97

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (19 units)

Documenten en downloads

Omschrijving

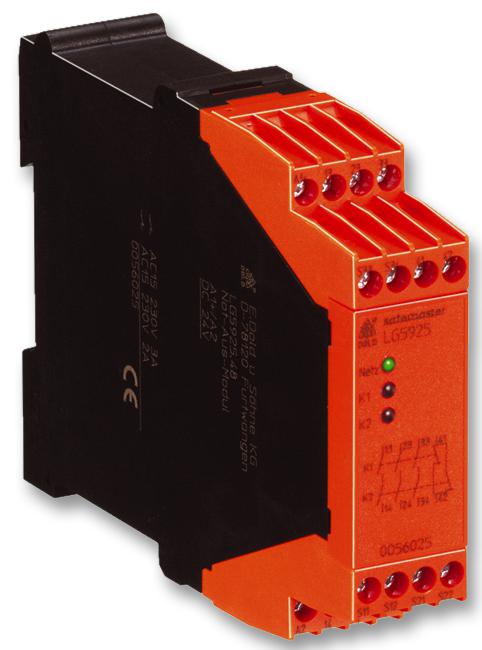

DOLD - LG 5925.48 AC/DC 24V - Safety Relay, 24 VDC, 3PST-NO, SPST-NC, LG 5925, DIN Rail, 3 A, Screw

  • Coil Voltage: 24VDC
  • Contact Configuration: 3PST-NO, SPST-NC
  • Product Range: LG 5925 Series
  • Relay Mounting: DIN Rail
  • Contact Current: 3A
  • Relay Terminals: Screw
  • Contact Voltage AC Nom: 230V
  • Contact Voltage DC Nom: -
  • Contact Material: -
  • IP Rating: IP20, IP40
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: BG, CE, EN, IEC
  • Coil Voltage VAC Nom: 230V
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 8A
  • Contact Current DC Max: 8A
  • Contact Current Max: 8A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 250V
  • External Depth: 121mm
  • External Height: 22.5mm
  • External Length / Height: 22.5mm
  • External Width: 90mm
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -15°C
  • Switch Current Max: 5A
  • Switching Current Max: 5A
  • Type: 0056025
