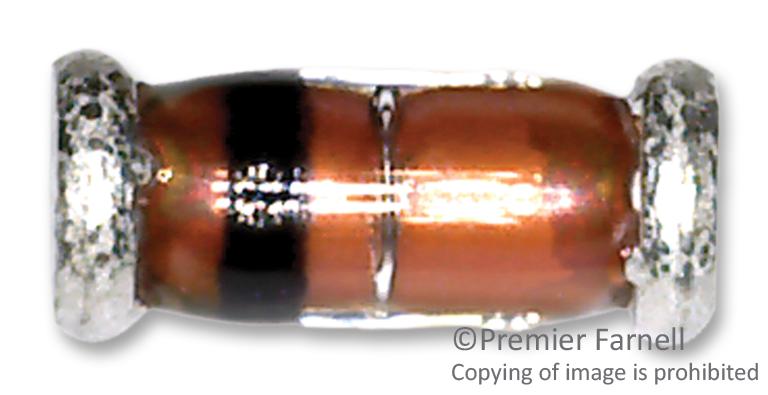

LL4148 L1 Diode, Small SIG, 100V, 0.15A, MiniMELF Taiwan Semiconductor

TAIWAN SEMICONDUCTORSKU:LL4148 L1G Bestelcode:2677470

Prijs:
Actie prijs€0,45

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (41971 units)

Documenten en downloads

Omschrijving

TAIWAN SEMICONDUCTOR - LL4148 L1G - Small Signal Diode, Single

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 100V
  • Forward Current If(AV): 150mA
  • Forward Voltage VF Max: 2.5V
  • Reverse Recovery Time trr Max: 4ns
  • Forward Surge Current Ifsm Max: 500mA
  • Operating Temperature Max: 175°C
  • Diode Case Style: SOD-80 (MiniMELF)
  • No. of Pins: 2Pins
  • Product Range: -
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Current Ifrm: 500mA
  • Current Ifsm: 2A
  • External Depth: 3.7mm
  • External Diameter: 1.6mm
  • External Length / Height: 3.7mm
  • External Width: 1.6mm
  • Junction Temperature Tj Max: 175°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +175°C
  • Peak Forward Current: 500mA
  • Power Dissipation Ptot Max: 500mW
  • Reverse Recovery Time trr Typ: 4ns
  • Reverse Voltage Vr Max: 75V
  • SMD Marking: CATHODE BAND
  • Tape Width: 8mm
  • Termination Type: Surface Mount Device
  • Weight: 0.00012kg
