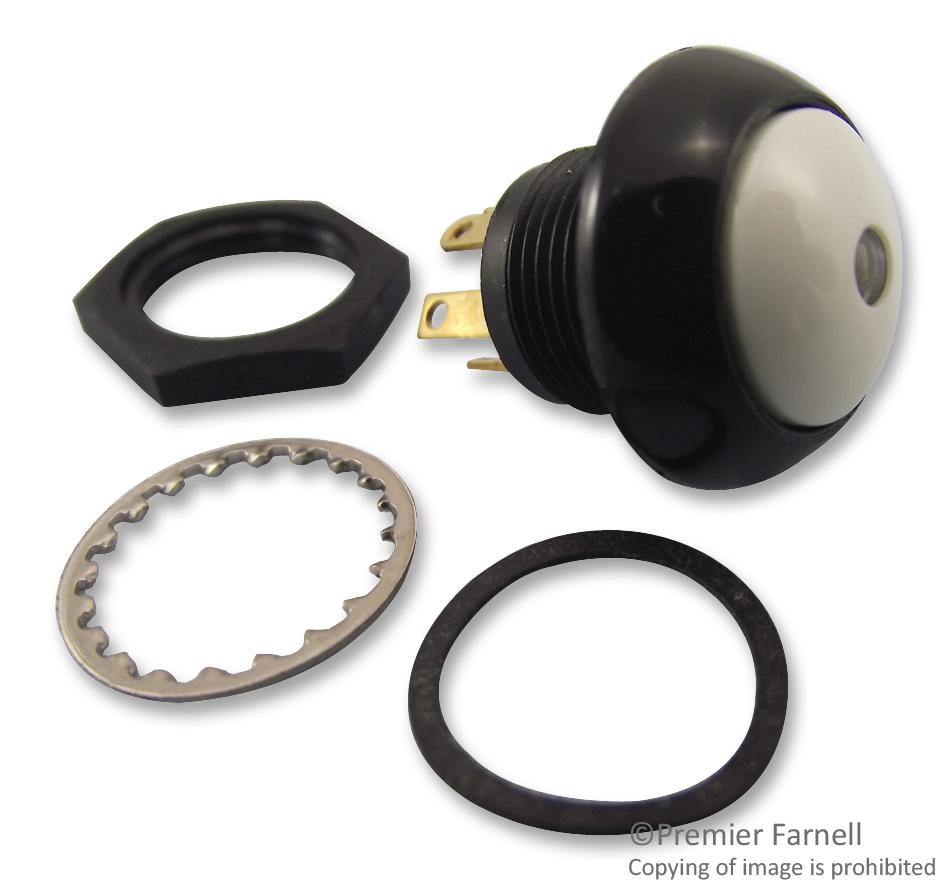

OTTO CONTROLS - LP9-11131K29 - Industrial Pushbutton Switch, IP68S, LP9, 12.8 mm, SPDT-DB, Momentary, Flush, White
- Product Range: LP9 Series
- Contact Configuration: SPDT-DB
- Switch Operation: Momentary
- Contact Current Max: 5A
- Contact Voltage AC Nom: 115V
- Illumination Colour: White
- Contact Voltage DC Nom: 28V
- Switch Terminals: Solder Lug
- SVHC: No SVHC (20-Jun-2016)
- Actuation Type: Flat
- Actuator / Cap Colour: White
- Body Depth: 0.27"
- Colour: White
- Contact Current AC Max: 4A
- Contact Current DC Max: 4A
- Contact Voltage VAC: 115V
- Contact Voltage VDC: 28V
- External Diameter: 0.69"
- IP / NEMA Rating: IP68
- IP Rating: IP68S
- Inductive Current Rating: 3A
- LED Colour: White
- LED Voltage: 12VDC
- Lens Depth: 0.38"
- Material: Thermoplastic
- No. of Electrical Operations: 500000
- No. of Mechanical Operations: 25000
- Operating Force: 7.56N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -55°C
- Panel Cutout Diameter: 12.8mm
- Pushbutton Actuator Style: Flush
- Pushbutton Switch Type: Industrial
- Resistive Current Rating: 5A
- Switch Mounting: Panel
- Thread Size: 15/32 - 32 UNRS - 2A
- Travel: 0.08"
