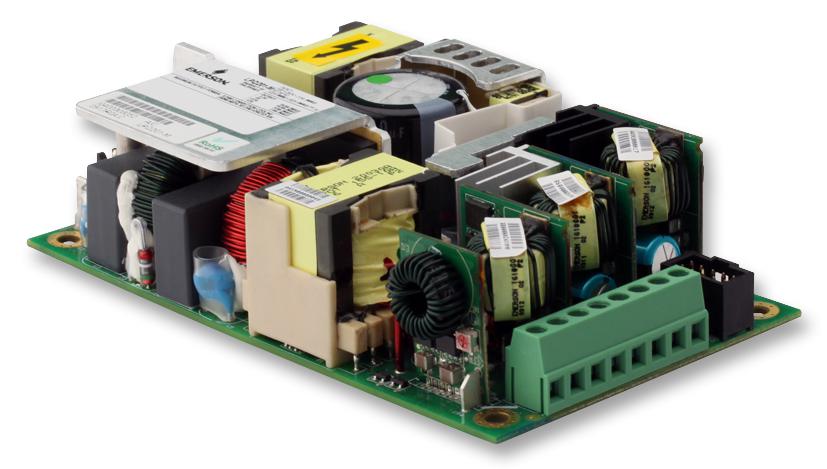

LPQ202-M Power Supply, AC-DC, Medical, 4O/P, 100W ARTESYN Embedded Technologies

ARTESYN EMBEDDED TECHNOLOGIESSKU:LPQ202-M Bestelcode:1886214

Prijs:
Actie prijs€154,97

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (29 units)

Documenten en downloads

Omschrijving

ARTESYN EMBEDDED TECHNOLOGIES - LPQ202-M - AC/DC Open Frame Power Supply (PSU), Medical, 4 Output, 200W @ 30CFM, 100 W, 90V AC to 264V AC

  • No. of Outputs: 4 Output
  • Power Rating (Covection Cooling): 100W
  • Power Rating (Forced Cooling): 200W @ 30CFM
  • Input Voltage VAC: 90V AC to 264V AC
  • Power Supply Output Type: Adjustable, Fixed
  • Output Voltage - Output 1: 5V
  • Output Current - Output 1: 13A
  • Output Voltage - Output 2: 12V
  • Output Current - Output 2: 5A
  • Output Voltage - Output 3: 24V
  • Output Current - Output 3: 1.5A
  • Output Voltage - Output 4: -12V
  • Current, Output 4: 2A
  • Product Range: LPQ200-M Series
  • SVHC: No SVHC (15-Jan-2018)
  • Applications: Medical
  • Approvals / Standards: CSA 60601, UL 60601
  • Height: 33.53mm
  • Input Frequency: 63Hz
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 90V
  • Length: 127mm
  • No. of Outputs: 4Outputs
  • Output Power Max: 100W
  • Power Rating: 200W
  • Power Supply Type: Open Frame
  • Width: 76.2mm
