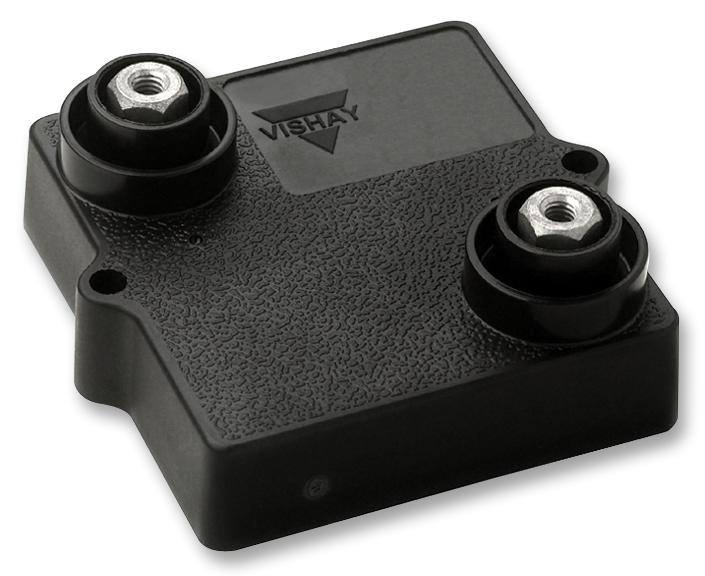

VISHAY - LPS0300H1R00JB - Resistor, Screw, 1 ohm, LPS 300, 300 W, ± 5%, Screw, 5 kV
- Resistance: 1ohm
- Product Range: LPS 300 Series
- Power Rating: 300W
- Resistance Tolerance: ± 5%
- Resistor Terminals: Screw
- Voltage Rating: 5kV
- Resistor Element Material: Thick Film
- Temperature Coefficient: ± 500ppm/°C
- Approval Category: UL 94V-0
- External Depth: 60mm
- External Length / Height: 25.2mm
- External Width: 64.7mm
- No. of Pins: 2Pins
- Operating Temperature Max: 120°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +120°C
- Resistor Case Style: Heat Sinkable Planar
- Resistor Mounting: Panel
