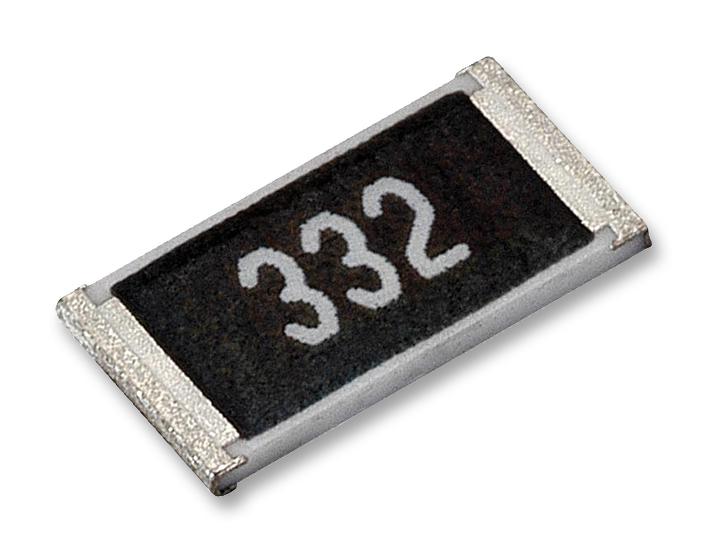

LR1206-R10FW Res, 0R1, 1%, 0.5W, 1206, Thick Film TT Electronics / WELWYN

TT ELECTRONICS / WELWYNSKU:LR1206-R10FW Bestelcode:1099914

Prijs:
Actie prijs€1,81

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2980 units)

Documenten en downloads

Omschrijving

TT ELECTRONICS / WELWYN - LR1206-R10FW - SMD Chip Resistor, 0.1 ohm, ± 1%, 500 mW, 1206 [3216 Metric], Thick Film, General Purpose

  • Resistor Case Style: 1206 [3216 Metric]
  • Resistance: 0.1ohm
  • Product Range: LR Series
  • Voltage Rating: 200V
  • Resistor Element Material: Thick Film
  • Power Rating: 500mW
  • Resistance Tolerance: ± 1%
  • Temperature Coefficient: ± 100ppm/°C
  • Automotive Qualification Standard: AEC-Q200
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 3.2mm
  • External Length / Height: 0.8mm
  • External Width: 1.63mm
  • Full Power Rating Temperature: 40°C
  • No. of Pins: 2Pins
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Pack Quantity: 1
  • Reel Quantity: 3000
  • Resistor Mounting: Surface Mount Device
  • Temperature Coeff. +: 100ppm/°C
  • Temperature Coeff. -: 100ppm/°C
  • Tolerance +: 1%
  • Tolerance -: 1%
  • Voltage Rating V DC: 200V
