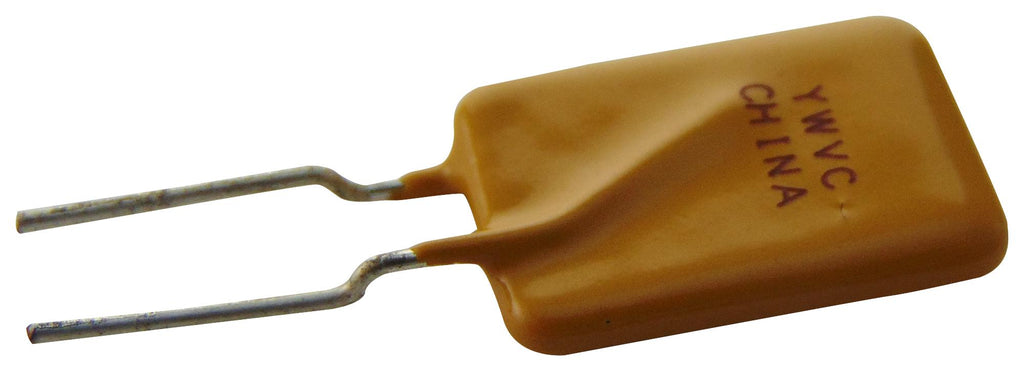

LVR040K PolySwitch, 0.40A LITTELFUSE

LITTELFUSESKU:LVR040K Bestelcode:1175836

Prijs:
Actie prijs€1,27

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (804 units)

Documenten en downloads

Omschrijving

LITTELFUSE - LVR040K - Resettable Fuse, PPTC, PolySwitch LVR, 240 VAC, 400 mA, 900 mA, 24 s, Rectangular

  • Thermistor Mounting: Through Hole
  • Product Range: PolySwitch LVR Series
  • Holding Current: 400mA
  • Tripping Current: 900mA
  • Voltage Rating: 240VAC
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jun-2015)
  • Approval Bodies: CSA, TUV
  • Approval Category: UL Recognised
  • External Depth: 3.8mm
  • External Length / Height: 20.9mm
  • External Width: 11.5mm
  • Height: 20.9mm
  • Holding Current Max Ih: 0.4A
  • Initial Resistance Max: 0.97ohm
  • Initial Resistance Min: 0.6ohm
  • Lead Length: 7.6mm
  • Lead Spacing: 5.8mm
  • Operating Voltage: 240V
  • Response Time: 26s
  • Thermistor Type: PTC Resettable Fuse
